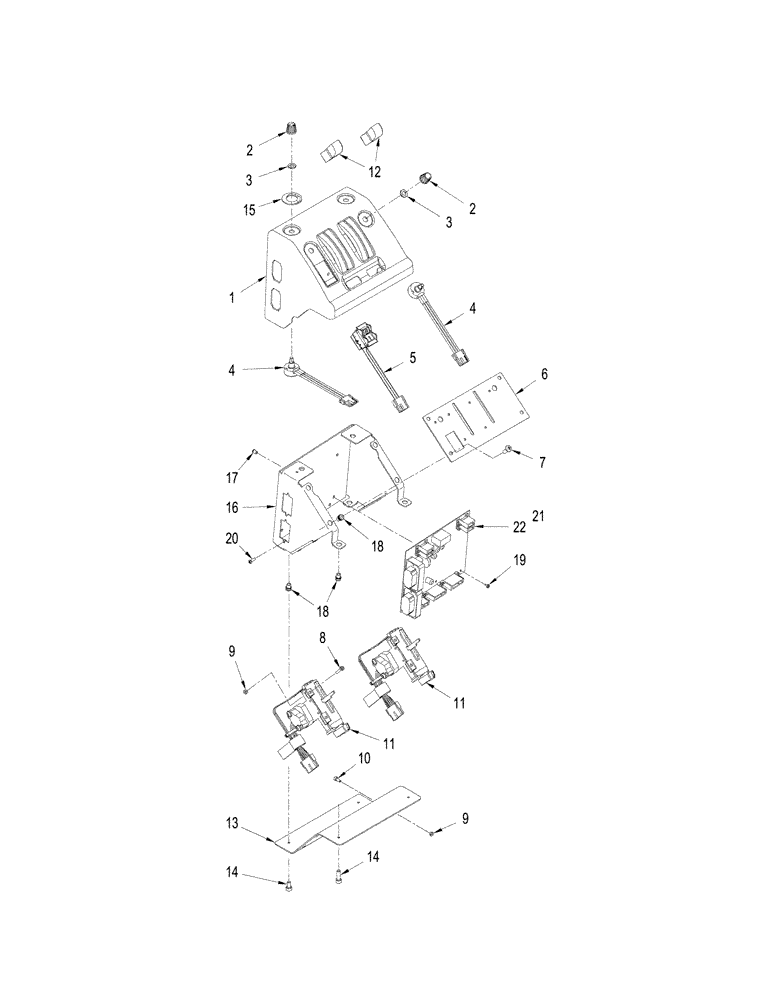

Запчасти Case IH STEIGER 335 (04-34) - TWIN FLOW HYDRAULIC CONTROLS (04) - ELECTRICAL SYSTEMS

87518273

CONTROL UNIT

Box Assy., Twin Flow, Inc. 1 - 9 & 11 -15

1шт.

1

442120A2

COVER

Control Box

1шт.

2

276797A1

KNOB

Flow Control

4шт.

3

444868A1

NUT

3/4"

8шт.

4

256305A2

POTENTIOMETER,1000 Ohm

Draft Control

4шт.

5

413148A1

SWITCH

Twin Flow

1шт.

6

NSS

NOT SOLD SEPARAT

Plate, Mounting

1шт.

7

444867A1

SCREW,BTN HD, M6 x 1 x 15mm, Cl 10.9

Pan Hd, M6 x 16, CL4.8

4шт.

8

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

4шт.

9

824-1404

NUT,M4, Cl 5

6шт.

10

864-4010

HEX SOC SCREW,M4 x 10mm, Cl 8.8

2шт.

11

87518273

CONTROL UNIT

Electrohydraulic

2шт.

12

406962A1

KNOB

Remote Lever, Twin Flow

2шт.

13

418148A2

COVER

Plate

1шт.

14

565-103

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

15

438237A1

DECAL

Flow Control

1шт.

16

411981A3

BRACKET

Mounting, Twin Flow Control Box

1шт.

17

412295A1

SPACER

5шт.

18

404287A1

INSERT,M6

12шт.

19

47112222

SCREW

M4 x 6

5шт.

20

25-HT00012

SCREW

4шт.

21

NSS

NOT SOLD SEPARAT

Software

1шт.

Download Software from Service Tool.

1шт.

22

412070A1

PRINTED CIRCUIT BOAR

1шт.
