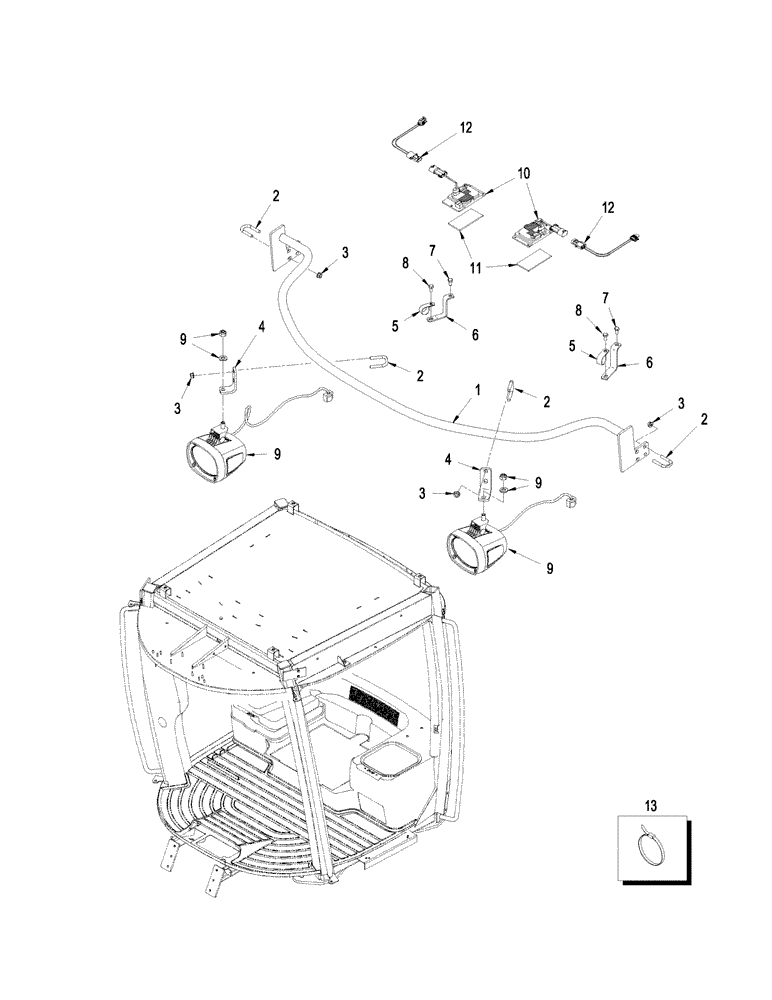

Запчасти Case IH STEIGER 335 (04-32) - LAMPS - CAB MOUNTED H.I.D. (04) - ELECTRICAL SYSTEMS

1

87488561

BRACKET

Light Mounting

1шт.

2

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

6шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

16шт.

4

87488564

BRACKET

H.I.D. Light Mounting

2шт.

5

515-22254

CLAMP,1", Insul, 5/16" Bolt

2шт.

6

87489627

BRACKET

H.I.D. Bar Support

2шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

9

87475202

LAMP

H.I.D., Cab Mounted

2шт.

10

87475204

BALLAST

H.I.D., Gen 5, 4 Pin, 12 V

2шт.

10

87475204R

REMAN ELECT CONTROL

STEIGER 335 4WD TRACTOR, H.I.D., Gen 5, 4 Pin, 12 V (8/07-)

2шт.

10

87475204C

CORE-ELECTRONIC CONT

Return Number

2шт.

11

406450A1

FASTENER

Dual Lock

2шт.

12

87475203

CABLE TERMINAL

Ballast to Rear Harness

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7-8"

4шт.
