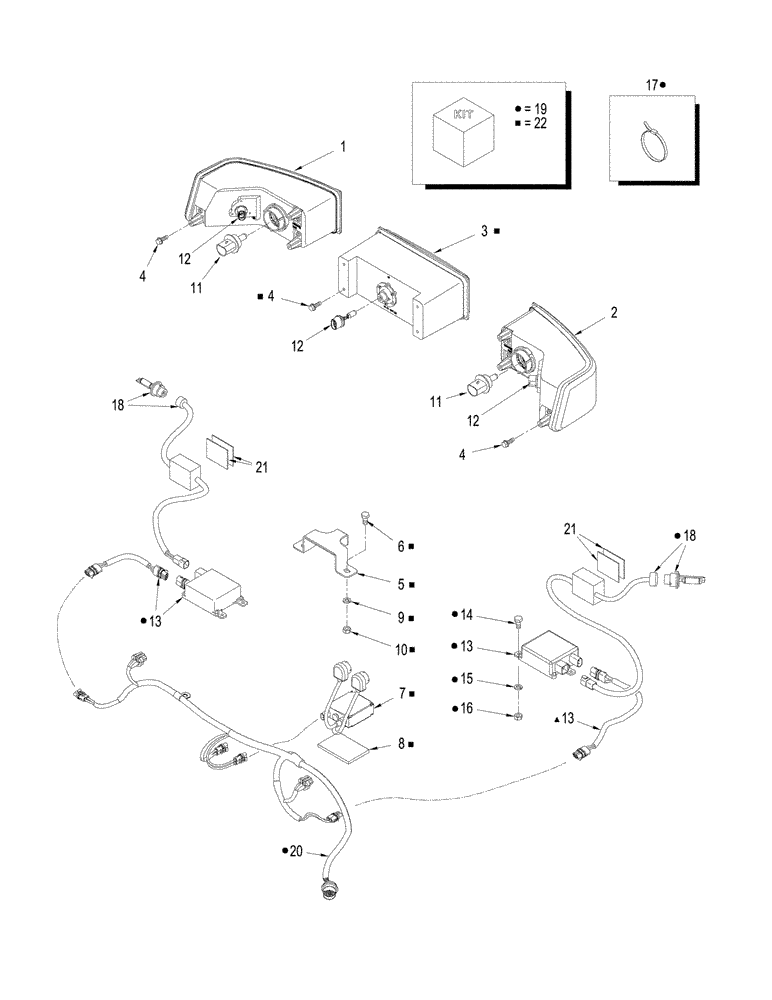

Запчасти Case IH STEIGER 335 (04-28) - HEADLAMPS - NORTH AMERICA (04) - ELECTRICAL SYSTEMS

1

365842A1

HEADLAMP

LH, Hi / Lo, with Work Lamp, Inc. 11 & 12

1шт.

2

365841A1

HEADLAMP

RH, Hi / Lo, with Work Lamp, Inc. 11 & 12

1шт.

3

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

Center, Halogen, Inc. 12

1шт.

3

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center, High Intensity Discharge (H.I.D.) - Includes Bulb (NSS due to cost)

1шт.

4

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1шт.

5

333646A1

CLAMP

Ballast, High Intensity Discharge (H.I.D.)

1шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

7

322332A1

BALLAST

Center, High Intensity Discharge (H.I.D.)

1шт.

8

333643A1

GASKET

Foam

1шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

388872A1

BULB

Headlamp

1шт.

12

323093A1

BULB

885-12V, Halogen Work Lamp

1шт.

13

87427690

BALLAST

Harness and Front Jumper, RH & LH

2шт.

14

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

1шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

16

832-10405

NUT,M5 x .8, Cl 8

1шт.

17

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (175 - 200 mm)

4шт.

18

87475201

BULB,HID

H.I.D., w/ Harness

2шт.

19

719619026

KIT

H.I.D. Light, Front Corner, Inc. 14 - 18 & 20

1шт.

20

87337669

HARNESS

Light Bar ( 3 Lamps)

1шт.

21

406450A1

FASTENER

Dual Lock

4шт.

22

334234A1

KIT

H.I.D. Front Center, Inc. 3 - 10

1шт.
