Запчасти Case IH STEIGER 335 (04-26) - LAMPS - REAR FRAME, H.I.D. (04) - ELECTRICAL SYSTEMS

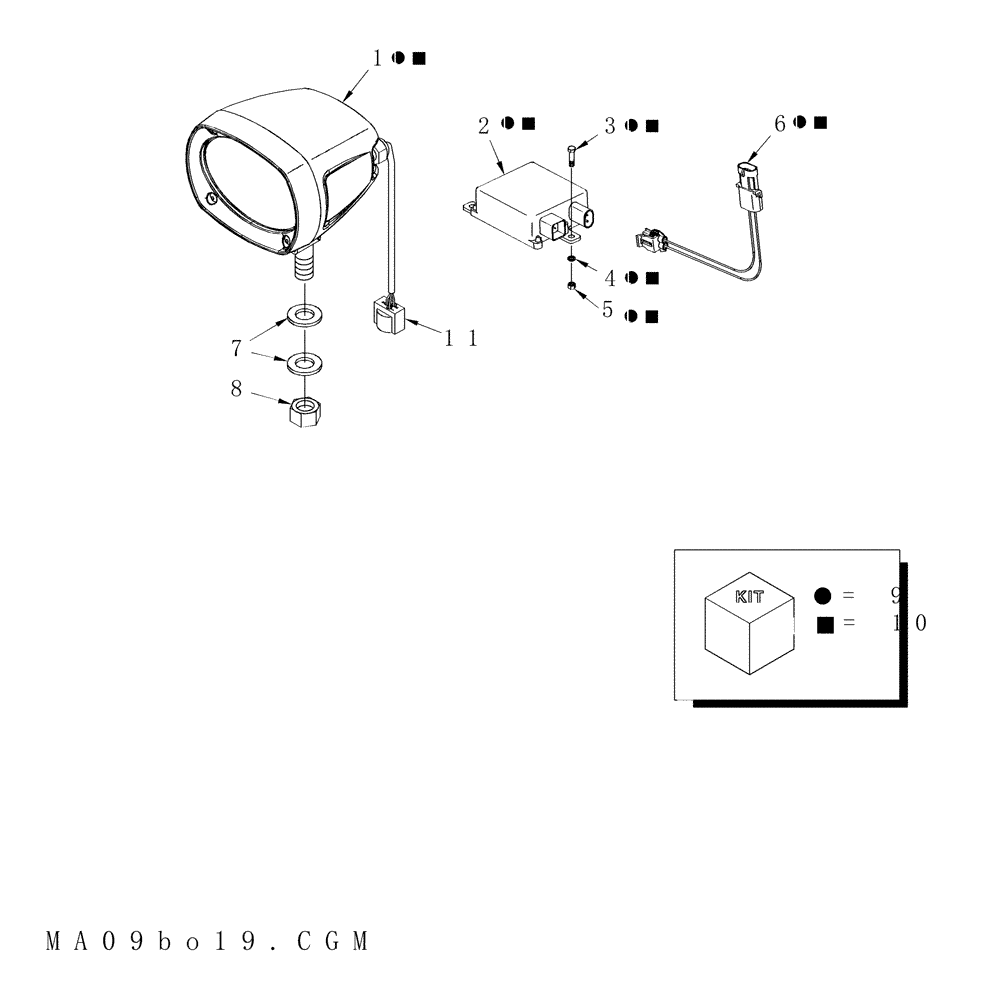

Схема запчастей Case IH STEIGER 335 - (04-26) - LAMPS - REAR FRAME, H.I.D. (04) - ELECTRICAL SYSTEMS
10
9
8
5
10
10
10
10
2
10
9
10
11
9
9
6
ma09bo19.cgm
1
9
9
7
9
3
4

Артикул

Название

Примечание

Количество

1

87419587

LAMP

Flood, H.I.D., Serial Range: -Z8F109732

2шт.

1

87475205

LAMP,HID, 12V, 35W, Clear

Flood, H.I.D., Start Serial: Z8F109732

2шт.

1

87419591

LAMP

Trap, H.I.D., Serial Range: -Z8F109732

2шт.

1

87475202

LAMP

Trap, H.I.D., Start Serial: Z8F109732

2шт.

2

87475204

BALLAST

Rear H.I.D.

1шт.

If Ballast 447742A1 is Needed Order ASN Z8F109732 Ballast 87475204, 87475202 Ballast Cable & 87475205 Flood Lamp or 87475202 Trap Lamp.

1шт.

2

87475204R

REMAN ELECT CONTROL

STEIGER 335 4WD TRACTOR, Rear H.I.D. (8/07-)

1шт.

2

87475204C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87475204

BALLAST

Rear H.I.D., Start Serial: Z8F109732

1шт.

2

87475204R

REMAN ELECT CONTROL

STEIGER 335 4WD TRACTOR, Rear H.I.D., Start Serial: Z8F109732 (8/07-)

1шт.

2

87475204C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

5

832-10405

NUT,M5 x .8, Cl 8

1шт.

6

87419583

CABLE

Ballast to Rear Harness, Serial Range: -Z8F109732

1шт.

6

87475203

CABLE TERMINAL

Ballast to Rear Harness, Start Serial: Z8F109732

1шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

9

719618003

FIP KIT

H.I.D., Rear Flood, Inc. 1 - 6

1шт.

10

719702013

FIP KIT

H.I.D., Rear Trap, Inc. 1 - 6

1шт.

11

87722023

BULB,HID, 85V, 35W

H.I.D. with Harness

2шт.

Выбрано товаров: 21
