Запчасти Case IH STEIGER 335 (04-17) - HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE AND THREE POINT HITCH (04) - ELECTRICAL SYSTEMS

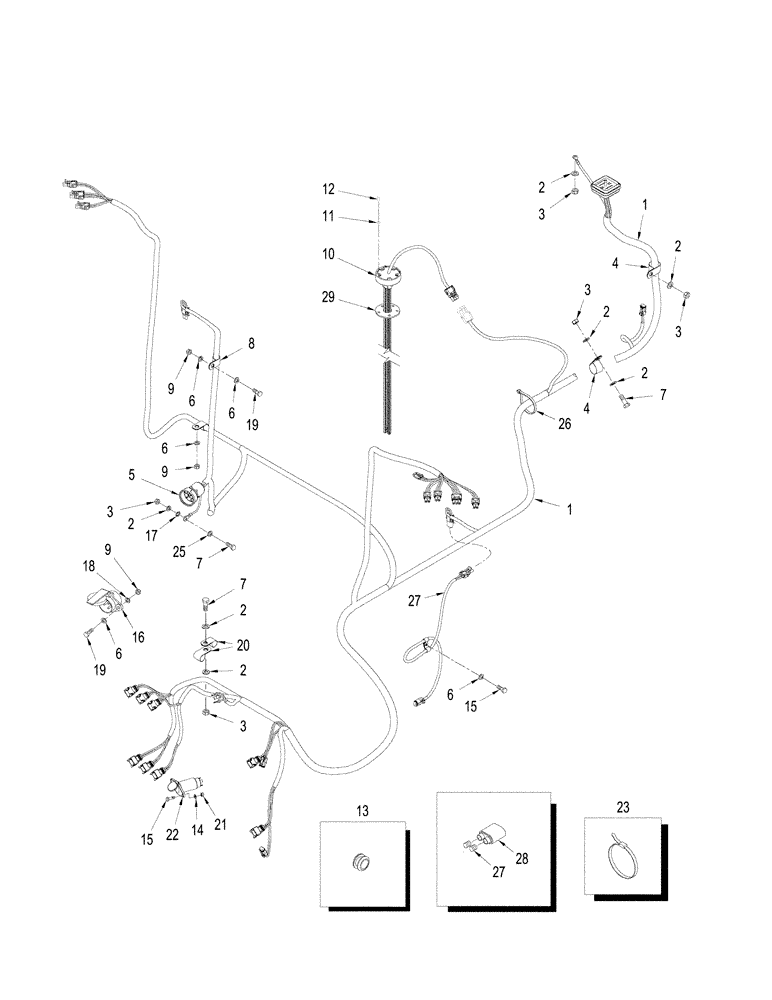

Схема запчастей Case IH STEIGER 335 - (04-17) - HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE AND THREE POINT HITCH (04) - ELECTRICAL SYSTEMS
17
26
7
1
20
1
3
6
4
2
2
23
3
2
18
28
2
9
6
10
12
2
3
3
6
14
8
9
5
27
13
22
16
19
19
6
21
11
4
3
6
9
15
7
27
2
7
26
2
25
15

Артикул

Название

Примечание

Количество

1

87537301

HARNESS

Rear Frame

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

4

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

5

481849C1

PROTECTIVE COVER

Connector

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

8

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

10

87393112

SENSOR

Fuel Level

1шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

12

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

5шт.

13

328265A1

GROMMET

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

16

121645C1

MULTIPOLE CONNECTOR,7 Pin

N.A. Only

1шт.

17

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

20

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

22

367322A1

CONNECTOR, ELEC

CONNECTOR Remote, Three-Point Hitch

1шт.

23

440567A1

CABLE TIE

Tie, 508 mm (20")

1шт.

24

84317073

HARNESS

Differential Lock

1шт.

25

892-11010

LOCK WASHER,M10

1шт.

26

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

4шт.

27

225127C1

PLUG

8шт.

28

245483C1

ELEC CONNECTOR,Male, 2 Pin

Without Field Lights

4шт.

29

87537695

GASKET

Fuel Level Sensor

1шт.

Выбрано товаров: 29
