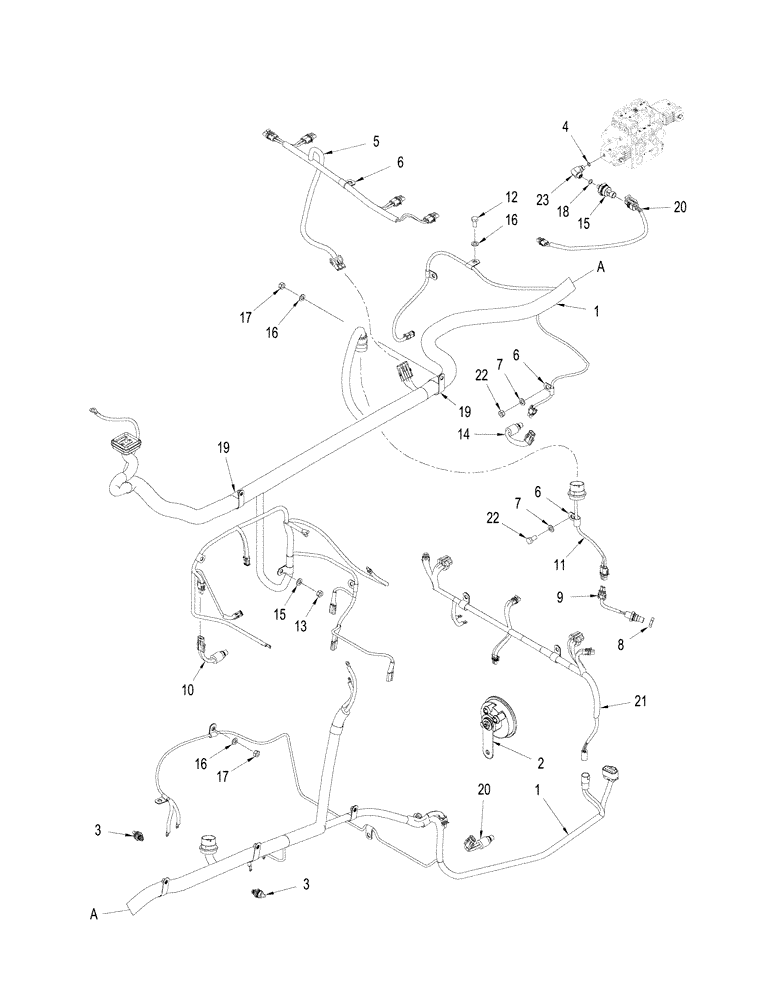

Запчасти Case IH STEIGER 335 (04-15) - HARNESS - FRONT FRAME (04) - ELECTRICAL SYSTEMS

1

87582874

HARNESS

Front Frame

1шт.

1

87582876

HARNESS

Front Frame, Not Illustrated

1шт.

Used with ACCUSTEER applications

1шт.

2

87049215

HORN

1шт.

3

87521424

TEMPERATURE SENDER

Axle Filter

2шт.

4

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

5

87655037

HARNESS

Front Lower Wiper

1шт.

6

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

8

934120R1

THIN NUT,Thin, M20 x 1.5

1шт.

9

A186004

SENSOR

Transmission Engine Speed, Output Shaft

1шт.

10

339529A1

PRESSURE SWITCH

Park Brake

1шт.

11

87545505

HARNESS

Transmission

1шт.

With Manual Shift Transmission

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

5шт.

14

330124A1

SWITCH

Temperature, Axle Lube, M18 orb x 1.5

1шт.

15

375644A1

SENSOR

Presure, Inc. 18

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

L111928

CLAMP

5шт.

20

87551744

WIRE HARNESS

Steering Pressure Sensor

1шт.

21

87337669

HARNESS

Light Bar

1шт.

22

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

1шт.

23

87539795

ELBOW

Inc. 24

1шт.
