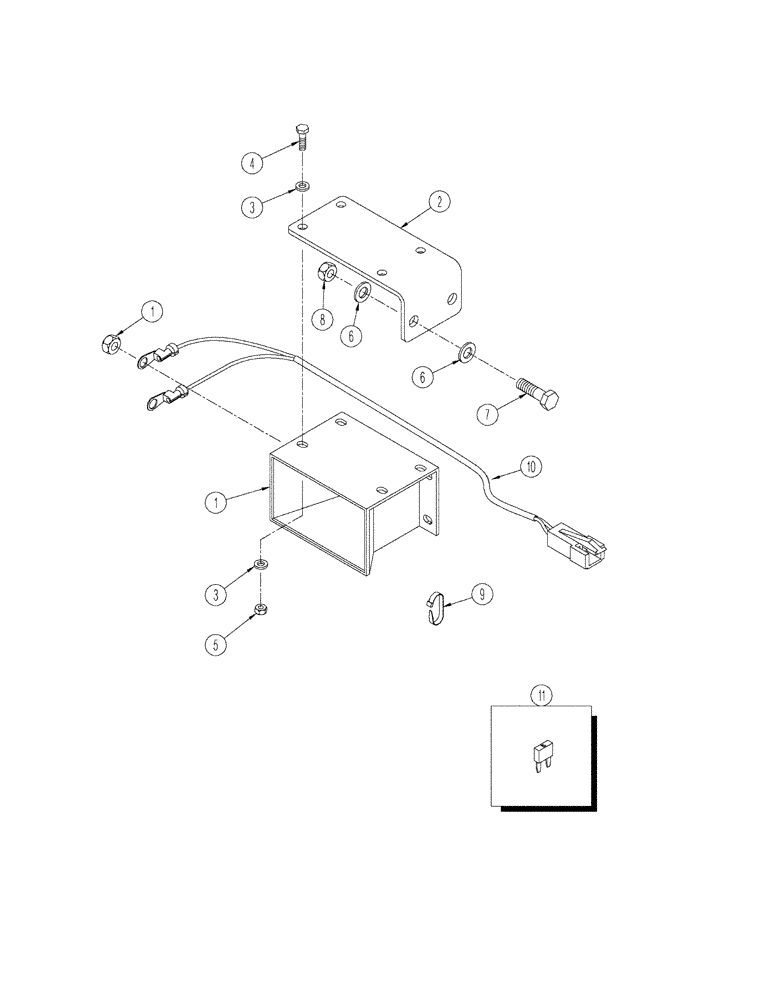

Запчасти Case IH STEIGER 335 (04-10) - ALARM - BACK-UP (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

Back-up, Inc. Nuts

1шт.

2

440134A1

BRACKET

Mounting, Back-up Alarm

1шт.

3

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

7

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

10

391364A1

HARNESS

Back-up Alarm

1шт.

11

121410A1

FUSE,5A, Mini, Tan

Back-up Alarm

1шт.
