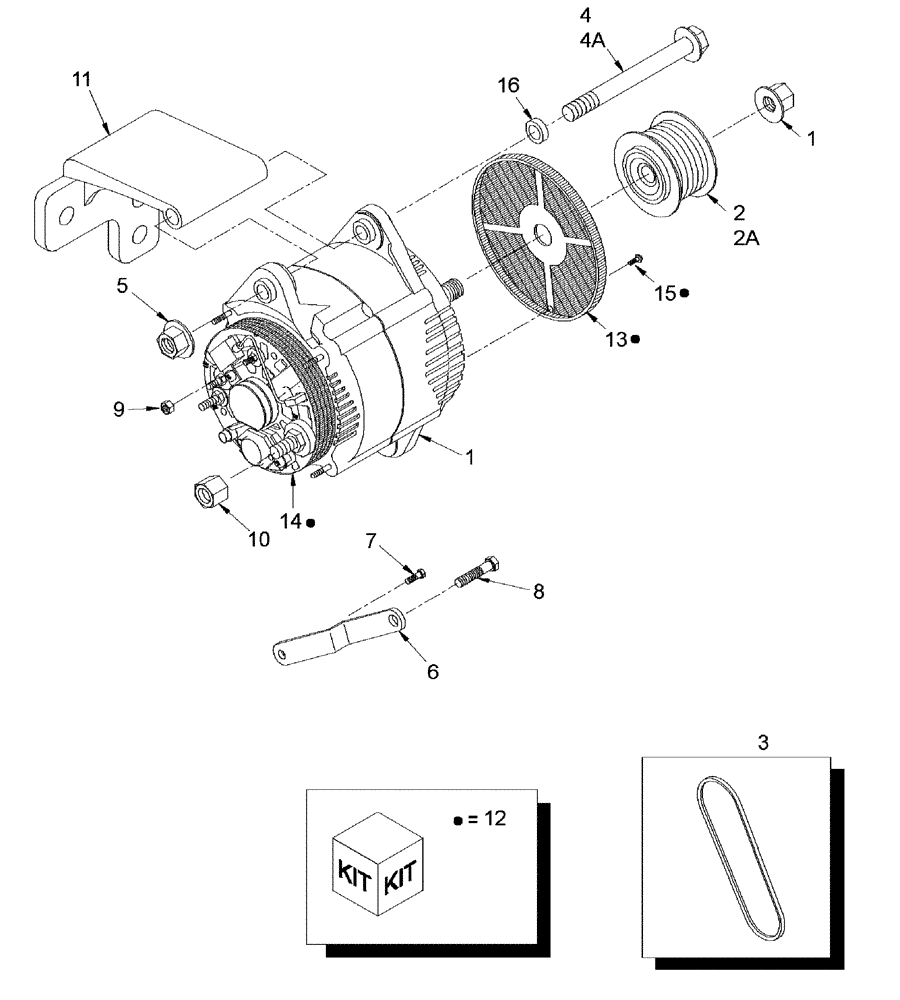

Запчасти Case IH STEIGER 335 (04-07) - ALTERNATOR - MOUNTING (04) - ELECTRICAL SYSTEMS

1

87439313

ALTERNATOR

150 Amp

1шт.

1

87677207R

REMAN-ALTERNATOR

150A

1шт.

1

87677207C

CORE-ALTERNATOR

Return Part Number

1шт.

1

87677208

ALTERNATOR

175 Amp

1шт.

1

87677208R

REMAN-ALTERNATOR

175A

1шт.

1

87677208C

CORE-ALTERNATOR

Return Part Number

1шт.

1

87715398

ALTERNATOR,12V, 200A

200 Amp, Used with refs 2A, 4A, 16

1шт.

1

87715398R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87715398C

CORE-ALTERNATOR

Return Part Number

1шт.

2

87452704

PULLEY,70.66mm OD

Alternator

1шт.

Use with 150 and 175 Amp Alternators 87439313 and 87677208

1шт.

2a

87471474

PULLEY,70.66mm OD

Alternator

1шт.

Use with 200 Amp Alternator 87715398

1шт.

3

87437226

V-BELT,3.56 mm W x 1589.80 mm L, 5 Ribs

Accessory Drive, Alternator & A/C

1шт.

4

NSS

NOT SOLD SEPARAT

Bolt, Mounting

1шт.

Order from Your Engine Dealer.

1шт.

4a

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

Use with 200 Amp Alternator 87715398

1шт.

5

NSS

NOT SOLD SEPARAT

Nut, Flg

1шт.

Order from Your Engine Dealer.

1шт.

6

J944312

BRACE

Bracket, Alternator Support

1шт.

Order from Your Engine Dealer.

1шт.

7

NSS

NOT SOLD SEPARAT

Bolt

1шт.

Order from Your Engine Dealer.

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt

1шт.

Order from Your Engine Dealer.

1шт.

9

NSS

NOT SOLD SEPARAT

Nut

4шт.

Order from Your Engine Dealer.

1шт.

10

NSS

NOT SOLD SEPARAT

Nut

1шт.

Order from Your Engine Dealer.

1шт.

11

87360715

SUPPORT

Bracket, Alternator

1шт.

12

87612406

KIT

Debris Screen, Inc. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Screen, Front

1шт.

14

NSS

NOT SOLD SEPARAT

Screen, Rear

1шт.

15

NSS

NOT SOLD SEPARAT

Screw

4шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

Use with 200 Amp Alternator 87715398

1шт.
