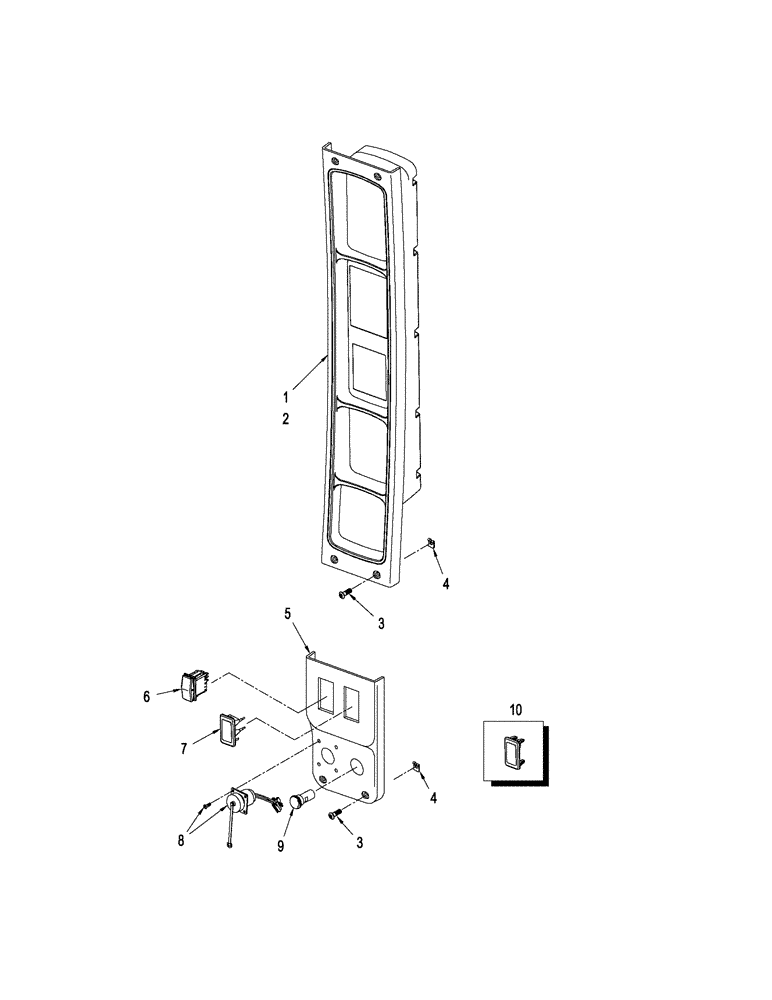

Запчасти Case IH STEIGER 335 (04-04) - INSTRUMENT CLUSTER & ROPS POST CONTROLS (04) - ELECTRICAL SYSTEMS

1

87549279

MODULE

Basic

1шт.

1

87549279R

REMAN-MODULE

MODULE

1шт.

1

87549279C

CORE-MODULE

CORE-MODUL Return Number, MODULE

1шт.

1

87520588

MODULE

Deluxe, Dual Can

1шт.

1

87520588R

REMAN-ELECT MONITOR

REMAN-MONITOR Steiger 335

1шт.

1

87520588C

CORE

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Software, Not Illustrated

1шт.

Download Software from Service Tool.

1шт.

3

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

4

177269A1

SPRING NUT,M4.2

6шт.

5

358343A2

BEZEL

ROPs Post

1шт.

6

418506A1

PARK BRAKE SWITCH

1шт.

With Manual Shift Transmission

1шт.

6

87612339

SWITCH

ACCUGUIDE Disengage

1шт.

With Power Shift Transmission

1шт.

7

409808A1

INDICATOR

Transmission Hi / Lo

1шт.

With Manual Shift Transmission

1шт.

8

227739A2

POWER SOCKET

Power Port

1шт.

9

87452321

OUTLET

Power

1шт.

10

406324A2

PLUG

Blank Opening

1шт.
