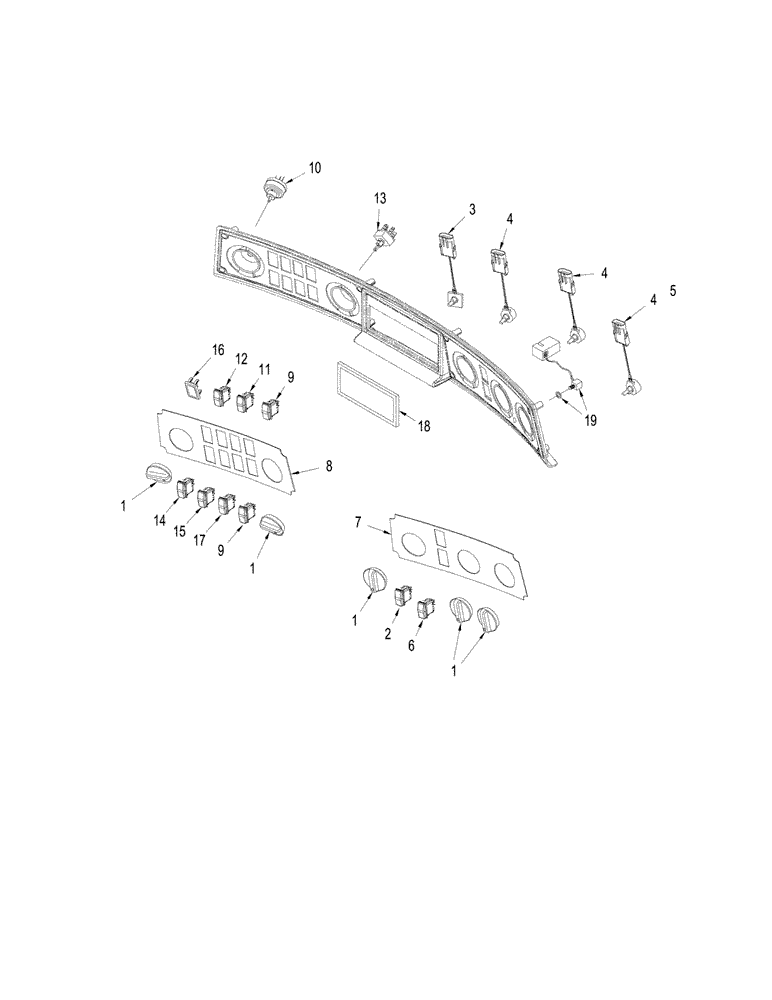

Запчасти Case IH STEIGER 335 (04-02) - CONTROL PANEL COMPONENTS (04) - ELECTRICAL SYSTEMS

1

1331046C2

KNOB

5шт.

2

87454558

SWITCH

Climate Control

1шт.

3

92100C2

SWITCH

Blower Motor

1шт.

4

418107A1

POTENTIOMETER,10,000 Ohm

Control Panel

1шт.

5

345439A1

POTENTIOMETER,10,000 Ohm

Vent Motor

1шт.

6

87305994

SWITCH

Defog

1шт.

7

87450974

DECAL

Climate Control, See Figure: 09-52

1шт.

8

431230A1

DECAL

Light Panel

1шт.

9

86989939

WINDSHIELD WIPER SWI

Rear and Lower Front

2шт.

10

177250A1

LIGHT SWITCH

Rotary, Work

1шт.

11

86989955

SWITCH

Cruise Control

1шт.

12

87414325

SWITCH

Beacon-Strobe

1шт.

13

345262A1

WINDSHIELD WASHER SW

Front Washer / Wiper

1шт.

14

87442098

LIGHT SWITCH

Road Lamp / Flasher

1шт.

15

87565185

SWITCH

Center H.I.D. Light

1шт.

16

126844A1

PLUG,1.427” x .62” , Plastic

Hole Cover

3шт.

17

86989953

SWITCH

Cruise Control, Increase / Decrease

1шт.

18

1535219C1

COVER

Without Radio

1шт.

19

87562465

HARNESS

Auxiliary In, Serial Range: -Z8F110054

1шт.
