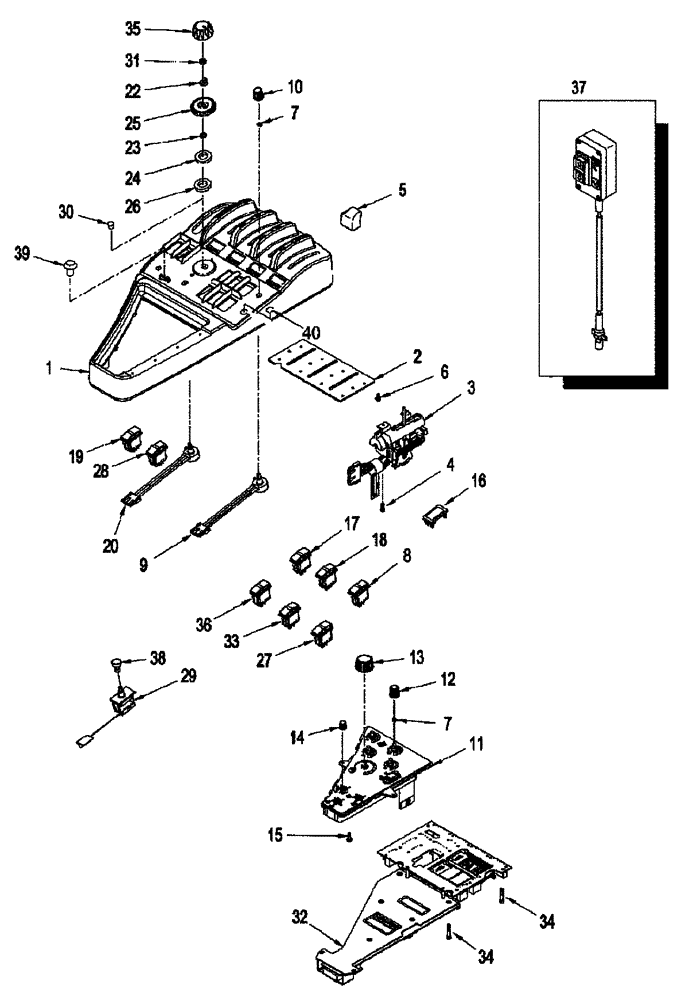

Запчасти Case IH STEIGER 335 (04-01) - CONTROLS - CONSOLE, RIGHT-HAND (04) - ELECTRICAL SYSTEMS

1

87314378

CONSOLE

Housing, Upper, with Decals, See Figure: 09-18

1шт.

87395318

CONTROL

Electronics, Inc. 2 - 4

1шт.

2

230098A1

PLATE

Mounting, Remote Valve Control

1шт.

3

87395299

CONTROL VALVE

Remote Auxiliary

4шт.

3

47372893R

REMAN-JOYSTICK

STEIGER 335 4WD TRACTOR (8/07-), Reman for New PN 87395299

4шт.

3

47372893C

CORE-JOYSTICK

Return Number

4шт.

4

281-3446

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

8шт.

5

406962A1

KNOB

Electronic Remote Control

4шт.

6

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

4шт.

7

A39888

NUT

3/8"

2шт.

8

86989947

SWITCH

Valve, Fifth Auxiliary Remote

1шт.

9

256305A2

POTENTIOMETER,1000 Ohm

Flow Control

1шт.

10

276797A1

KNOB

Flow Control

1шт.

11

339735A1

PANEL

Secondary

1шт.

With Three Point Hitch

1шт.

11

238290A4

PANEL

Secondary

1шт.

Without Three Point Hitch

1шт.

12

276797A1

KNOB

Flow Control

4шт.

13

187820A1

KNOB

Remote Valve Timer Control

1шт.

14

223433A1

KNOB

Electronic Draft Control

2шт.

15

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

16

406324A2

PLUG

2шт.

17

87361920

SWITCH

Differential Lock, Rear

1шт.

18

87361921

SWITCH

Differential Lock, Front, If Used

1шт.

18

87334815

SWITCH

Four Wheel Drive Steering, If Used

1шт.

Used with ACCUSTEER applications

1шт.

19

86990406

SWITCH

Three Point Hitch Position

1шт.

20

87665287

POTENTIOMETER,14.8V

Three Point Hitch Position

1шт.

22

87436077

WASHER,9.9mm ID x 16mm OD x 0.41mm Thk

Stainless Steel

1шт.

23

87435947

SPRING

Potentiometer Detent

1шт.

24

87435853

SPACER,22mm ID x 38mm OD x 7mm L

Hitch Position

1шт.

25

87435194

KNOB

Retent Position Indicator Wheel

1шт.

26

87435852

SPACER

1шт.

27

86989951

SWITCH

Auxiliary Auto Mode

1шт.

28

87422017

SWITCH

Head Land / Turn Sequence

1шт.

29

414495A1

SWITCH

Power Takeoff

1шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

Without Three Point Hitch

1шт.

31

87435946

LOCK WASHER

Detent

1шт.

32

87524858

CONTROL

Armrest Processor Module

1шт.

Download Software from Service Tool.

1шт.

32

87524858R

REMAN ELECT CONTROL

Steiger 335, w/o Software

1шт.

32

87524858C

CORE-ELECTRONIC CONT

Return Number

1шт.

33

87538596

SWITCH

Auto Field/Auto Road - APM (Auto Productivity Management) - CGS (Constant Ground Speed)

1шт.

33

87414465

SWITCH

Autoshift

1шт.

34

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

6шт.

35

87434770

KNOB

Hitch Position Control

1шт.

36

87414327

SWITCH

EDC, Slip Limit Control

2шт.

37

382247A1

SWITCH

Remote, Three Point Hitch

1шт.

38

411705A3

KNOB

Power Takeoff

1шт.

39

87323840

SWITCH

ACCUGUIDE, If Used

1шт.

40

446562A1

DECAL

Without Power Takeoff

1шт.
