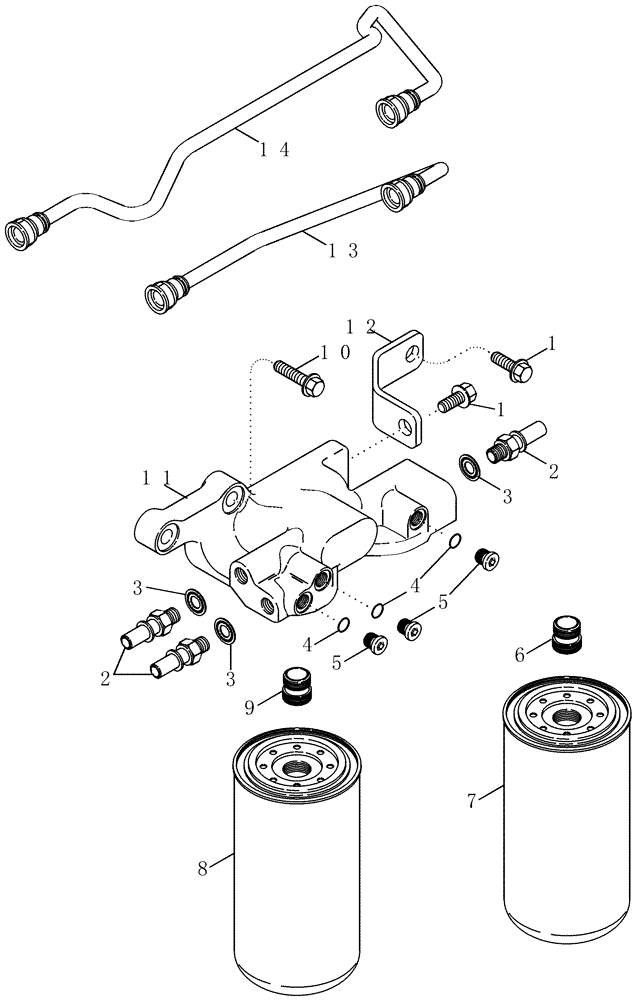

Запчасти Case IH STEIGER 335 (03-06) - FUEL FILTER AND CONNECTIONS (03) - FUEL SYSTEM

1

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

2

87349484

ADAPTER

3шт.

3

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

3шт.

4

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

3шт.

5

J678923

PLUG,M10 x 1

10 mm

3шт.

6

84131590

ADAPTER

Fuel Filter

1шт.

7

84477359

FUEL FILTER

25 Micron

1шт.

8

87360565

FUEL FILTER

5 Micron

1шт.

9

87349753

ADAPTER

Fuel Filter

1шт.

10

87349727

BOLT

2шт.

11

87356213

FILTER HEAD

Fuel

1шт.

12

87356110

BRACKET

Mounting, Fuel Filter

1шт.

13

87341273

FUEL TUBE,0.63" OD

Fuel Supply

1шт.

14

87341277

FUEL TUBE

Fuel Supply

1шт.
