Запчасти Case IH STEIGER 335 (03-05) - PUMP, FUEL TRANSFER (03) - FUEL SYSTEM

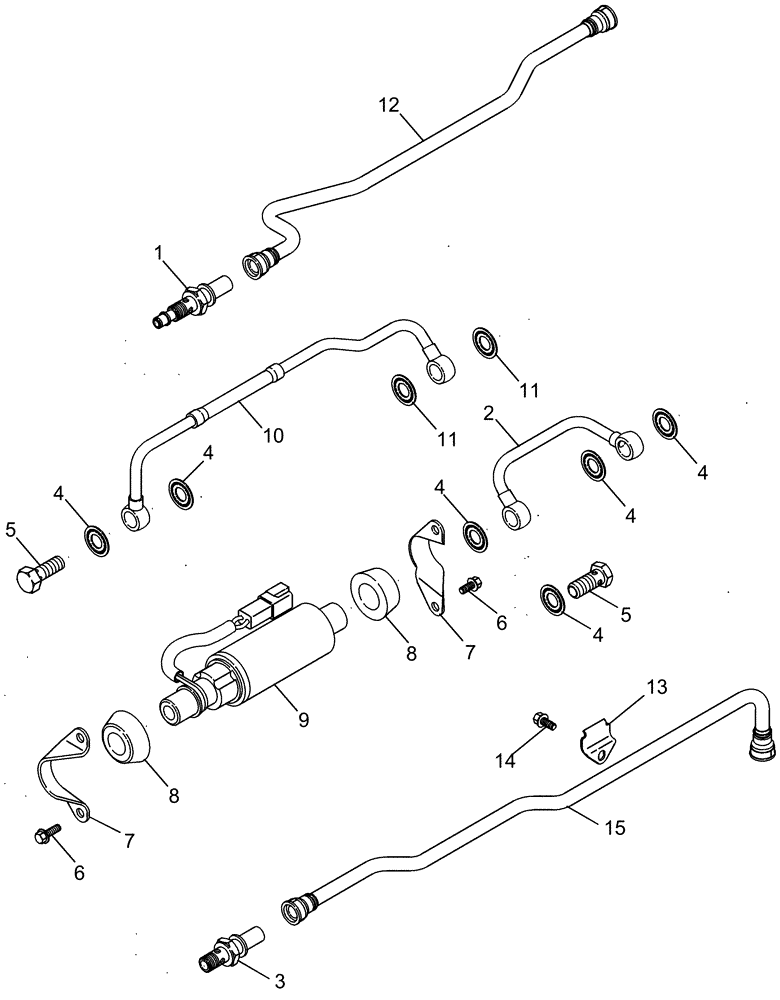

Схема запчастей Case IH STEIGER 335 - (03-05) - PUMP, FUEL TRANSFER (03) - FUEL SYSTEM
13
11
5
4
4
7
1
5
4
6
4
2
14
8
3
10
9
12
4
11
15
6
8
7
4

Артикул

Название

Примечание

Количество

1

87346904

CHECK VALVE

Before Engine Serial Number 73030179

1шт.

1

84328464

CHECK VALVE

After Engine Serial Number 73030180

1шт.

2

87346902

FUEL TUBE,0.315" OD

Fuel Supply

1шт.

3

87346936

ADAPTER

1шт.

4

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

6шт.

5

J903035

BANJO BOLT

2шт.

6

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

4шт.

7

87346733

BRACKET

Mounting, Fuel Injection Pump

2шт.

8

87346917

ISOLATOR

Mounting

2шт.

9

87346909

FUEL PUMP

1шт.

10

87346734

FUEL TUBE

Fuel Supply

1шт.

11

87417767

SEALING WASHER,13.67mm ID x 22.35mm OD x 1.27mm Thk

2шт.

12

87339066

FUEL TUBE,0.63mm OD

Fuel Supply

1шт.

13

87339057

BRACKET

Support

1шт.

14

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16, CL10.9

1шт.

15

87339061

FUEL TUBE,0.63mm OD

Fuel Supply

1шт.

Выбрано товаров: 16
