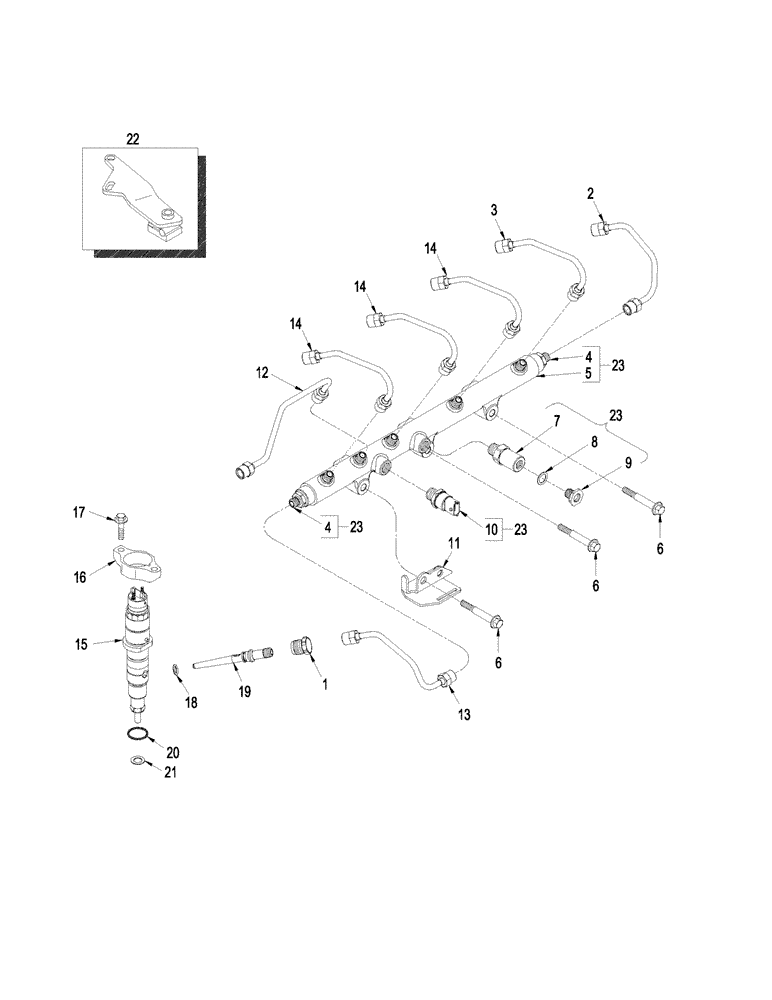

Запчасти Case IH STEIGER 335 (03-04) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

87347221

RETAINER

6шт.

2

87348184

FUEL TUBE,3 mm ID x 8 mm OD x 217.70 mm L

1шт.

3

87348175

TUBE,3 mm ID x 8 mm OD x 217.50 mm L

1шт.

4

87348150

FITTING

Manifold, High Pressure Fuel

2шт.

For Service Order Fuel Manifold Kit 87347257

1шт.

5

87376171

FITTING

Inc. 4, 5, 7-10

1шт.

For Service Order Fuel Manifold Kit 87347257

1шт.

6

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

3шт.

7

87347275

VALVE PRESSURE RELIE

Inc. 8

1шт.

8

87348161

SEALING WASHER

Washer, Sealing

1шт.

For Service Order Fuel Manifold Kit 87347257

1шт.

9

NSS

NOT SOLD SEPARAT

Adapter

1шт.

For Service Order Fuel Manifold Kit 87347257

1шт.

10

87727942

SENSOR

Pressure

1шт.

11

87348302

BRACKET

Support, Fuel Manifold

1шт.

12

87348190

FUEL TUBE,3 mm ID x 8 mm OD x 394.10 mm L

1шт.

13

87348171

FUEL TUBE,3 mm ID x 8 mm OD x 217.60 mm L

1шт.

14

87348283

FUEL TUBE,3 mm ID x 8 mm OD x 217.50 mm L

6шт.

15

87538123

FUEL SYSTEM INJECTOR

Inc. 20 & 21

6шт.

87538123R

REMAN-FUEL INJECTOR

STEIGER 335, w/ 9 Liter Cummins Tier 3 Eng.

6шт.

87538123C

CORE-FUEL INJECTOR

Return Number

1шт.

87538123R

REMAN-FUEL INJECTOR

STEIGER 335, w/ 9 Liter Cummins Tier 3 Eng.

6шт.

87538123C

CORE-FUEL INJECTOR

Return Number

1шт.

16

87343005

CLAMP

6шт.

17

87343006

BOLT

12шт.

18

87348322

SEAL,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

6шт.

19

87348301

FITTING

Inc. 18

6шт.

20

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

Seal

6шт.

21

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

6шт.

22

87526423

SUPPORT

Fuel Injection Tube

1шт.

23

87347257

KIT

Fuel Manifold, Inc. 4, 5, 7-10

1шт.
