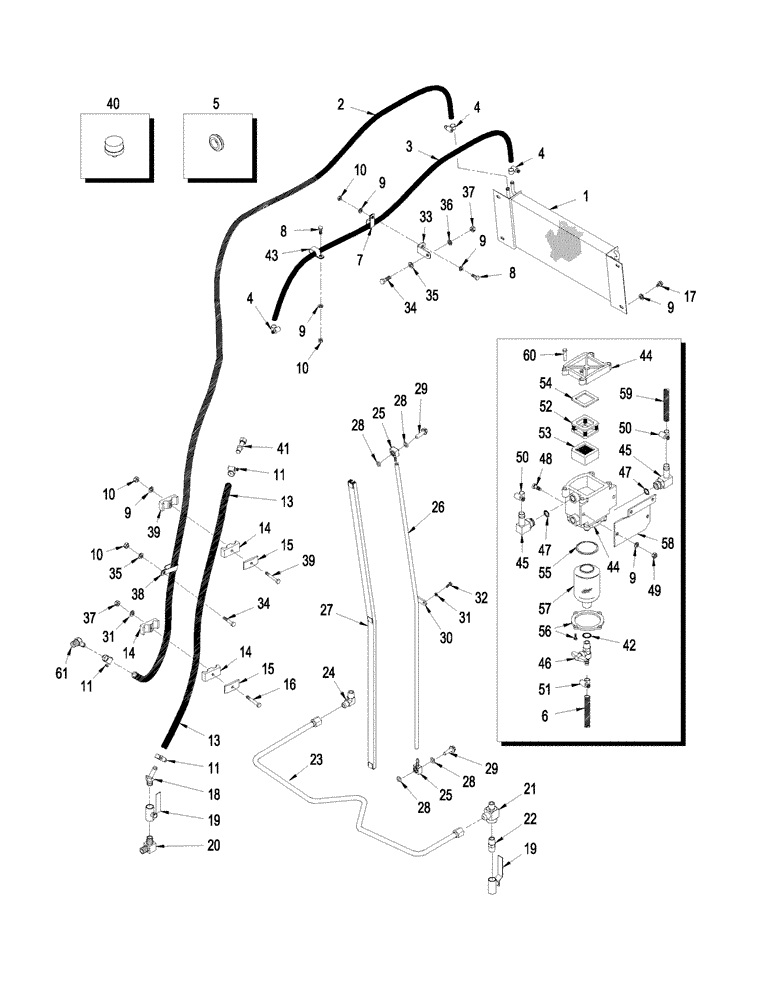

Запчасти Case IH STEIGER 335 (03-03) - FUEL LINES (03) - FUEL SYSTEM

1

319549A1

COOLER

Fuel

1шт.

2

87450700

HOSE

Cold Return, Serial Range: Cooler-Tank

1шт.

3

87450701

HOSE

Hot Return, Serial Range: Cooler-Tank

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

5

248-2146

GROMMET,5/8" ID x 7/8" Groove Dia

2шт.

6

87414236

HOSE

Drain

1шт.

7

31-1070

CLAMP,5/8", 3/8" Bolt, Double

1шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

11

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

12

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

1шт.

13

87450765

FUEL HOSE

Fuel Supply

1шт.

14

417931A1

HOSE CLAMP

2шт.

15

435468A1

PLATE

Support, Hose Clamp

2шт.

16

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

18

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

19

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Ball

2шт.

20

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

21

31-1000

TEE

1/2" PT x 1/2" PT x 7/8" fl

1шт.

22

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

23

87735873

TUBE,15.9 mm OD x 801, 311 mm L

Fuel Drain

1шт.

24

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

25

352767A1

FITTING

2шт.

26

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

Sight Gauge, Cut From 337242A1

1шт.

27

349870A1

CHANNEL

Sight Gauge

1шт.

28

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

29

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

30

402800A1

BRACKET

Mounting, Sight Guage

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

32

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

33

369960A1

BRACKET

Fuel Line

1шт.

34

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

36

892-11010

LOCK WASHER,M10

1шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

38

L101181

CLAMP,0.75" D Clamping pipes x 2

2шт.

39

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

40

90-7732T1

BREATHER

1шт.

41

31-3129

ADAPTER

7/8"-14

1шт.

87409378

FUEL FILTER

Strainer, Inc. 42, 44, 46 & 52 - 57

1шт.

42

369843A1

O-RING,2.5mm Thk x 10.5mm ID

Fuel Drain, Auxiliary Fuel Filter

1шт.

43

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

1шт.

44

NSS

NOT SOLD SEPARAT

Housing, Filter

1шт.

45

217-367

FITTING,90 Degree Elbow, 1/2" Hose Barb x 7/8" - 14 Male ORB

Inc. 47

2шт.

46

369844A1

DRAINCOCK/TAP SUPPLY

Valve

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

48

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

49

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

50

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

51

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

52

87333679

SPRING

Fuel Frame

1шт.

53

87409379

FUEL FILTER,30 Micron

30 Micron

1шт.

54

87333676

GASKET

Fuel Strainer

1шт.

55

87331930

GASKET

Auxiliary Filter

1шт.

56

87333671

RING

Retainer

1шт.

57

87409380

FILTER BOWL

Bowl, Clear

1шт.

58

87736374

BRACKET

Fuel Filter

1шт.

59

87314470

HOSE,12.70 mm ID x 485 mm

1шт.

60

87608457

SPECIAL BOLT

1шт.

61

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

62

194199A1

FUEL FILTER

In-Line Filter (Not Shown) Steiger 335 Only (Subs to P/N 84278141)

1шт.
