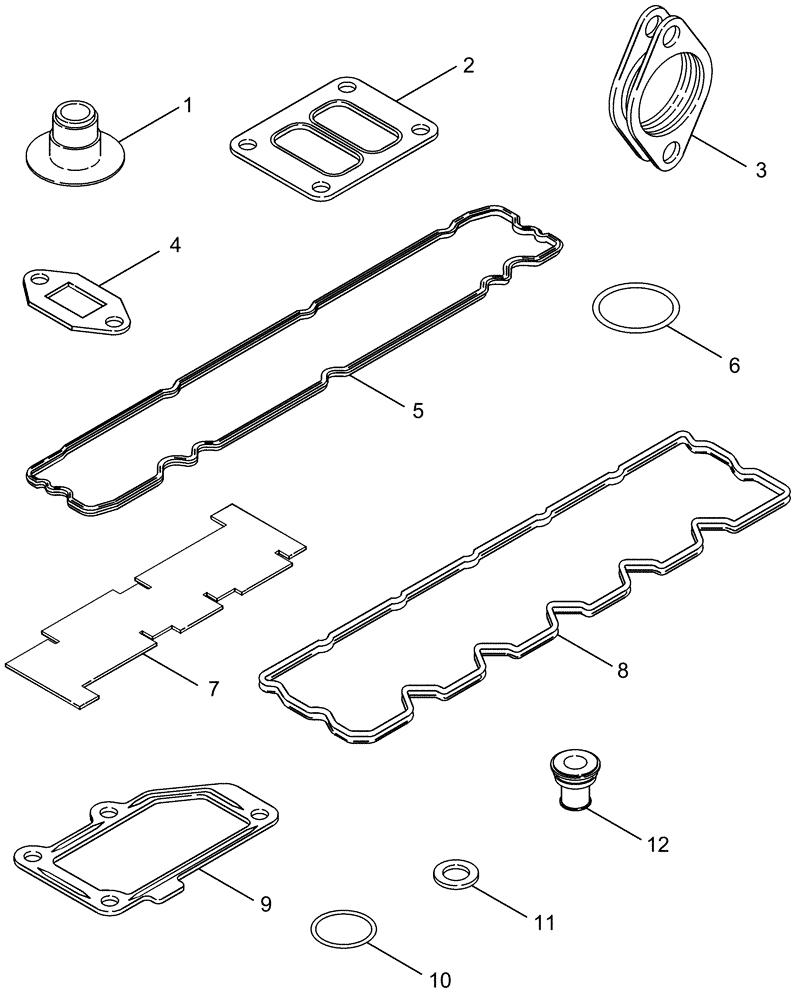

Запчасти Case IH STEIGER 335 (02-25) - VALVE GRIND GASKET KIT (02) - ENGINE

87490404

ENGINE GASKET KIT

Valve Grind, Inc. 1 - 12

1шт.

1

87352235

SEAL

Valve Stem

24шт.

2

J901356

GASKET,0.5mm Thk

Turbocharger

1шт.

3

84368103

MANIFOLD GASKET,1.08mm Thk

Exhaust

6шт.

4

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

5

87345861

GASKET,3.2mm Thk

Valve Cover

1шт.

6

87348322

SEAL,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Injector

6шт.

7

87404692

GAUGE

Length

1шт.

8

87344755

GASKET

Rocker Lever Housing

1шт.

9

87335272

GASKET

Intake

2шт.

10

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

87338651

O-RING,0.139" Thk x 1.859" ID, -225

1шт.

10

87350420

O-RING,2.62mm Thk x 82.22mm ID

1шт.

10

87350420

O-RING,2.62mm Thk x 82.22mm ID

1шт.

10

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

6шт.

10

87612821

O-RING,1.6mm Thk x 8.1mm ID

1шт.

11

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

11

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

6шт.

12

87342136

ISOLATOR

5шт.
