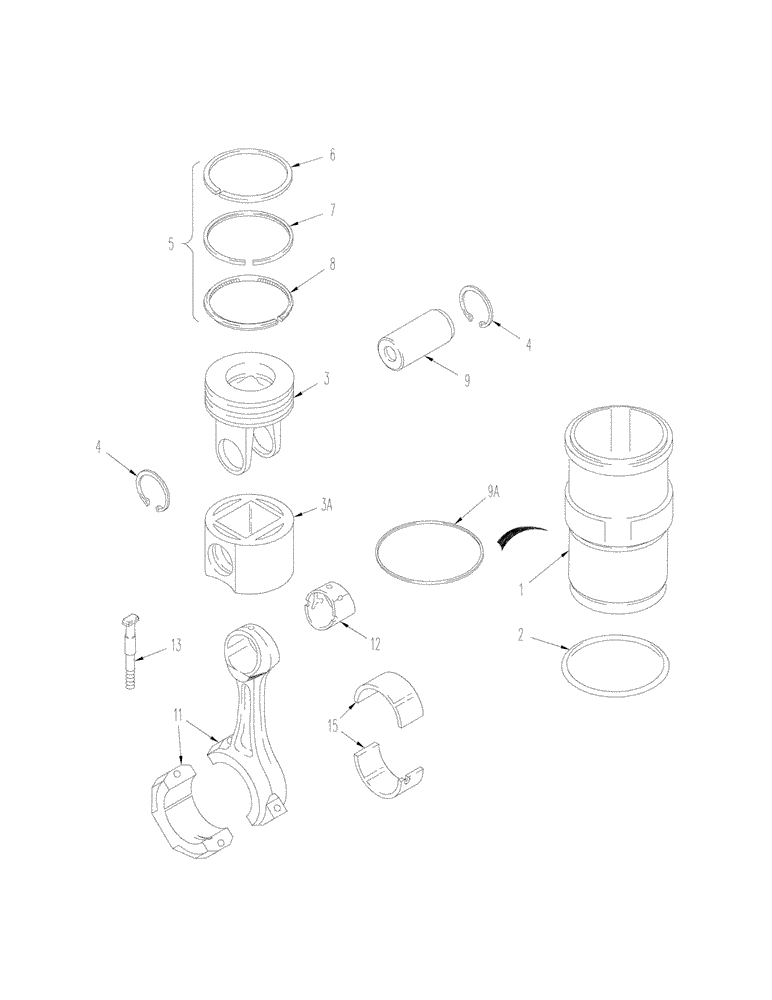

Запчасти Case IH STEIGER 335 (02-24) - PISTONS AND CONNECTING RODS (02) - ENGINE

87359888

ENGINE OVERHAUL KIT

1шт.

87359865

KIT

Piston, Standard, Inc. 2, 3A - 8, 9

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

3a

J966721

SKIRT

Piston

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

87343194

PISTON RINGS KIT

Inc. 6 - 8

6шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

87342670

PISTON PIN

1шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

87686998

CONNECTING ROD

Inc. 11 - 13

6шт.

87686998R

REMAN-CONNECTING ROD

STEIGER 335 (8/07-)

6шт.

87686998C

CORE-ROD CONNECTING

Return Number

1шт.

87356732

REMAN-CONNECTING ROD

Remanufactured, N.A. Only, Inc. 11 - 13

1шт.

87686998R

REMAN-CONNECTING ROD

STEIGER 335 (8/07-), Reman for New PN 87356732

1шт.

87686998C

CORE-ROD CONNECTING

Return Number

1шт.

87356735

CORE-ROD CONNECTING

CORE-CONNECTING ROD

1шт.

11

NSS

NOT SOLD SEPARAT

Rod

1шт.

12

87687031

BUSHING,45.02mm ID x 49.01mm OD x 43mm L

Connecting Rod

1шт.

13

J944679

BOLT

2шт.

15

87443389

BEARING LINER

Standard

6шт.

15

84156219

BEARING LINER

Undersize 0.25 mm

6шт.

15

84156220

BEARING SET

Undersize 0.50 mm

6шт.

15

84156221

BEARING SET

Undersize 0.75 mm

6шт.

15

84156222

BEARING SET

Undersize 1.00 mm

6шт.

87546493

REPAIR KIT

Piston Replacement, Inc. 1 - 3 & 11

1шт.

87686998R

REMAN-CONNECTING ROD

STEIGER 335 (8/07-), Reman for New PN 87546493

1шт.

87686998C

CORE-ROD CONNECTING

Return Number

1шт.
