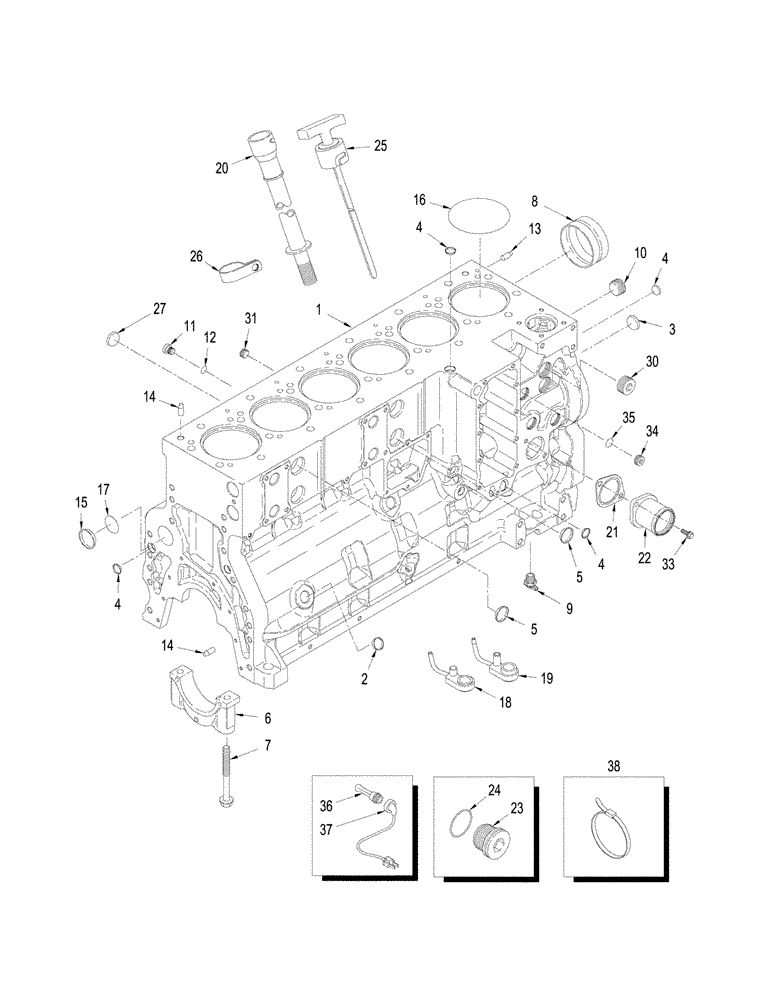

Запчасти Case IH STEIGER 335 (02-21) - CYLINDER BLOCK (02) - ENGINE

1

87539021

BASIC ENGINE

335hp

1шт.

See Note, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

1

87539021R

REMAN-BASIC ENGINE

335hp, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

1

87539021C

CORE-BASIC ENGINE

Return Number

1шт.

1

87544190

SHORT ENGINE

335hp, Inc. 1 - 8

1шт.

Stripped Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

1

84165305

CYLINDER BLOCK

Block, Engine, Stripped

1шт.

When Purchasing Also Order Kit 87338079

1шт.

2

J943808

PLUG

22 mm

1шт.

3

A77586

PLUG

28.9 mm

3шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

Main Bearing

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

87338079

KIT

Inc. 9 - 15, 17 - 19, 23, 24, 27, 31 & 42

1шт.

9

217-103

COCK, DRAIN

1/4" PT

2шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Inc. 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

4шт.

14

J901846

PIN,12.01mm OD x 24mm L

8шт.

15

41-3044

PLUG,Exp, 2 3/4"

70 mm

2шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

2шт.

18

87739191

NOZZLE

Fuel Injection

6шт.

19

87673839

NOZZLE

Fuel Injection

12шт.

20

87418224

TUBE,13.29mm L

Dipstick

1шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J944720

HYD CONNECTOR

Water Inlet

1шт.

23

J678921

PLUG

14 mm, Inc. 24

1шт.

24

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

25

87418248

DIPSTICK

Engine Oil

1шт.

26

A77508

CLAMP

7/16" ID

1шт.

27

A77530

PLUG

1-13/64" OD

3шт.

28

87337018

BOLT

(Not Shown)

6шт.

29

J909025

FLANGE BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

M8 x 1.25 x 55 (Not Shown)

6шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

5шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

6шт.

32

A77586

PLUG

(Not Shown)

3шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Inc. 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2,2 mm

1шт.

310493A1

KIT

Engine Block Heater, 120V / 1000W, Inc. 36 - 38

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in), Block Heater

1шт.

37

NSS

NOT SOLD SEPARAT

Element, 120V / 1000W

1шт.

310494A1

KIT

Coolant Heater, 240V / 1000W, Inc. 36 - 38

1шт.

36

J913112

WIRE HARNESS

305 mm (12 in), Block Heater

1шт.

37

NSS

NOT SOLD SEPARAT

Element, 240V / 1000W

1шт.

38

19-135

CABLE TIE

CABLE STRAP Tie, 356 mm (14")

1шт.

87359888

ENGINE OVERHAUL KIT

See Figure: 02-26, Not Illustrated

1шт.

39

J678912

O-RING,2.2mm Thk x 11.3mm ID

(Not Shown)

1шт.

40

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

(Not shown)

1шт.

41

J900956

PLUG

(Not Shown)

3шт.

42

87338185

BOLT

(Not Shown)

1шт.

43

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

(Not Shown)

1шт.

44

NSS

NOT SOLD SEPARAT

Screw, Cap, (Not Shown)

1шт.

45

J678923

PLUG,M10 x 1

(Not Shown)

6шт.

46

J678921

PLUG

(Not Shown)

1шт.
