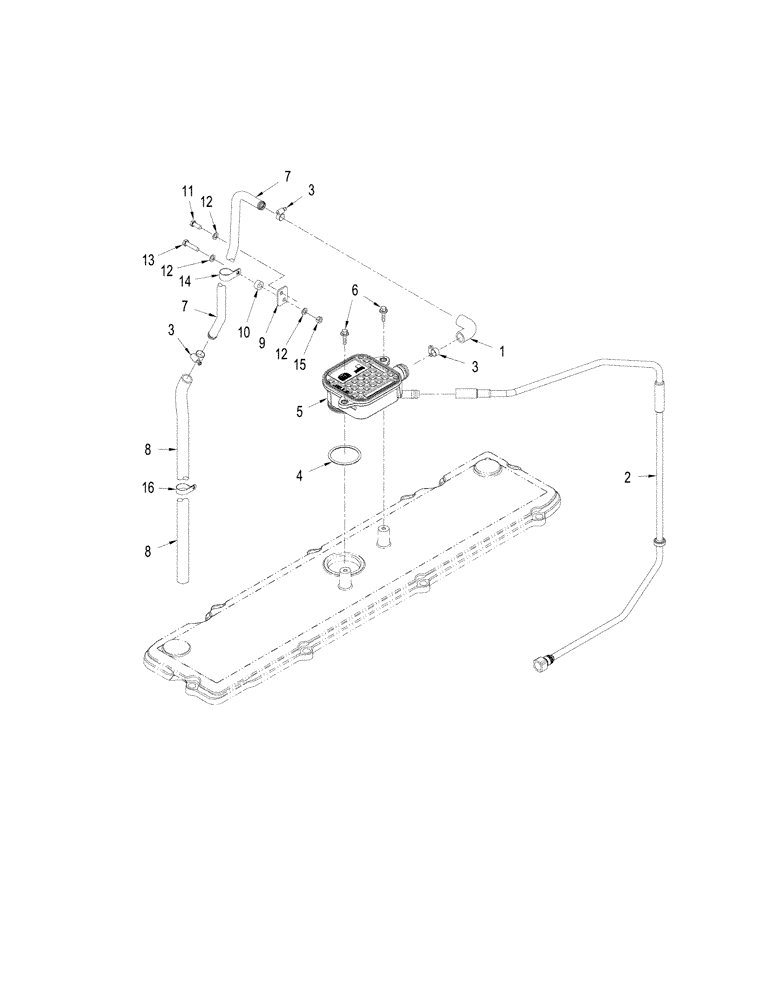

Запчасти Case IH STEIGER 335 (02-19) - CRANKCASE, BREATHER (02) - ENGINE

1

87448912

HOSE

Elbow

1шт.

2

87338653

TUBE

Lubrication Oil Drain

1шт.

3

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

3шт.

4

87338651

O-RING,0.139" Thk x 1.859" ID, -225

1шт.

5

87338649

BREATHER

Valve

1шт.

6

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

7

87448914

VENTILATION PIPE,1" OD

Engine Breather

1шт.

8

340972A1

HOSE

Breather

1шт.

9

87448920

BRACKET

Mounting

1шт.

10

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

1шт.

11

827-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

13

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

1шт.

14

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

16

515-22349

CLAMP,1 3/8", Insul, 5/16" Bolt

1шт.
