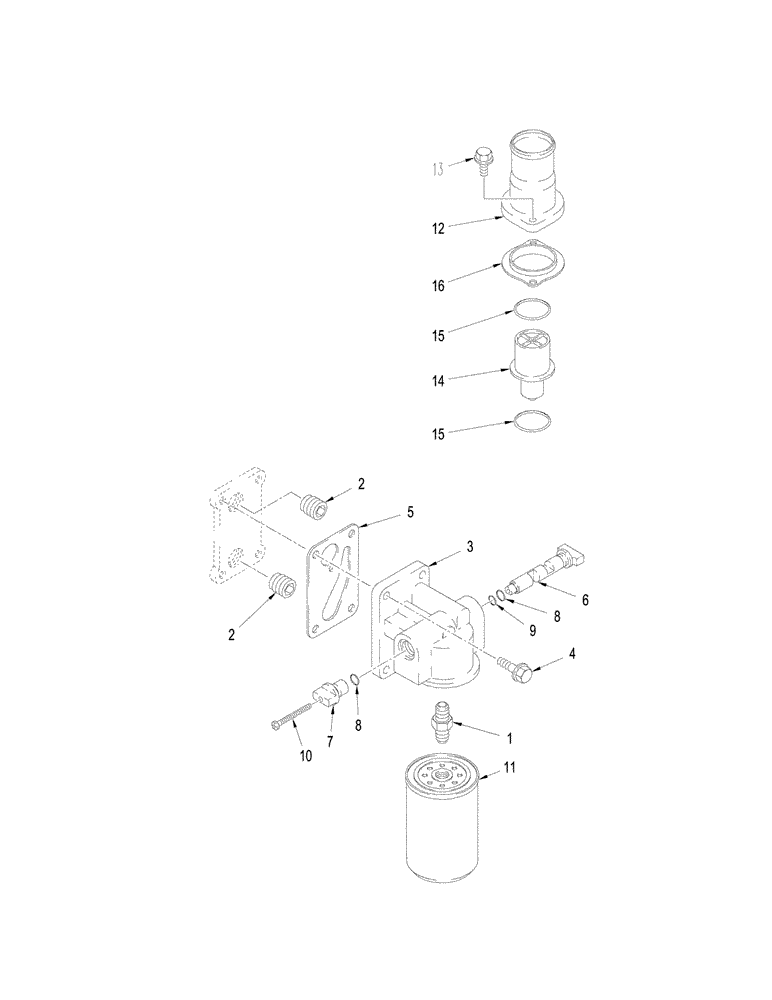

Запчасти Case IH STEIGER 335 (02-18) - THERMOSTAT - FILTER, WATER (02) - ENGINE

1

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

1шт.

2

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

2шт.

3

84152565

FILTER HEAD

1шт.

4

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

5

87612306

GASKET,1.15mm Thk

Head Filter

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE, Shut-Off, Shaft

1шт.

7

J943740

SHUT-OFF VALVE

1шт.

8

84153040

O-RING,0.103" Width

7/16" ID x 3/32"

2шт.

9

84153053

O-RING,0.426" ID x 0.566" OD x 0.07"

1шт.

10

84152982

SELF-TAP SCREW

1шт.

11

84605017

COOLANT FILTER

Water

1шт.

12

J944429

OUTLET

Inc. 16

1шт.

13

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

14

87698668

THERMOSTAT

Incl. 15

1шт.

15

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

16

NSS

NOT SOLD SEPARAT

GASKET, Outlet

1шт.
