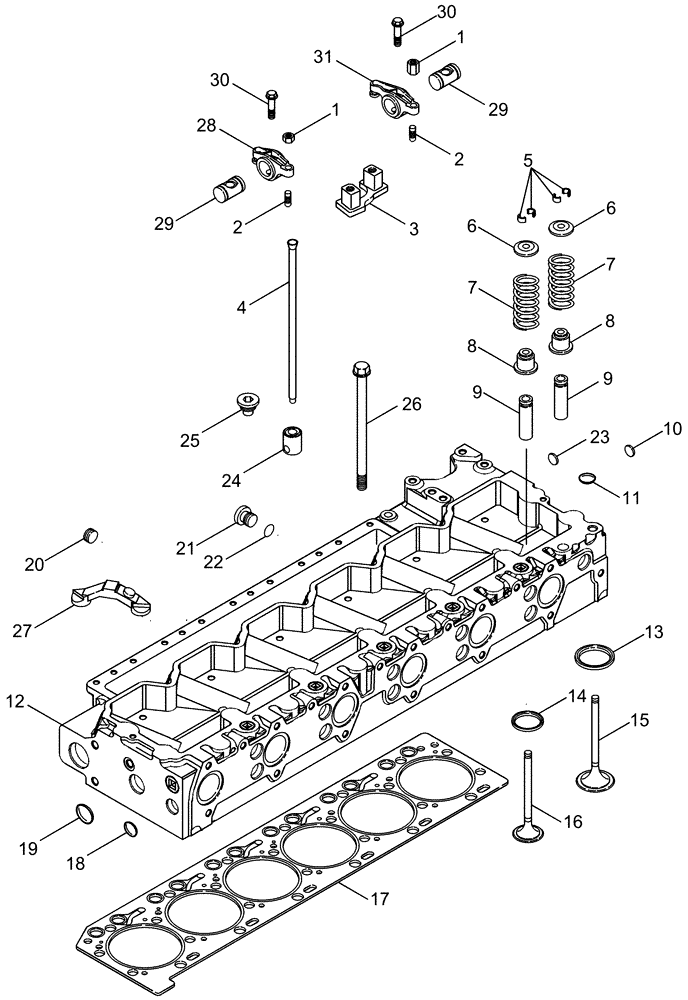

Запчасти Case IH STEIGER 335 (02-17) - CYLINDER HEAD - VALVE MECHANISM (02) - ENGINE

87666108

With Valves, Inc. 1 - 19, 23 & 26

1шт.

1

A77902

NUT

3/8" - 24 NF

1шт.

2

87436016

ADJUSTMENT SCREW,3/8" - 24 x 27.40mm

Rocker Lever

2шт.

3

J941140

SUPPORT

6шт.

4

87435955

PUSH ROD

12шт.

5

J900250

SCREW

Collet

48шт.

6

J944452

RETAINER

to BSN (ESN) 46535055

24шт.

6

J944452

RETAINER

Intake ASN (ESN), Start Serial: 46535055

12шт.

6

87351062

VALVE

Rotator, Exhaust ASN (ESN), Start Serial: 46535055

24шт.

7

87666321

VALVE SPRING

to BSN (ESN) 46654163

24шт.

7

87666321

VALVE SPRING

Intake ASN (ESN), Start Serial: 46654163

12шт.

7

87666324

VALVE SPRING

Exhaust ASN (ESN), Start Serial: 46654163

12шт.

8

87352235

SEAL

Valve Stem

24шт.

9

J948102

VALVE GUIDE

24шт.

10

A77590

PLUG

2шт.

11

87344079

PLUG

6шт.

12

NSS

NOT SOLD SEPARAT

Head, Cylinder, Stripped, Inc. 1A - 7

1шт.

13

J940152

INSERT

Intake

12шт.

14

87344002

INSERT

Exhaust

12шт.

15

87343688

STD INLET VALVE

STD ENGINE INLET VALVE Inlet

12шт.

16

87343693

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE Exhaust

12шт.

17

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

18

87344118

PLUG

30 mm

2шт.

19

J945093

PLUG

Expansion

1шт.

20

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

21

J678923

PLUG,M10 x 1

10 mm

1шт.

22

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

23

87344108

PLUG

Expansion

1шт.

24

87435851

TAPPET

Roller

12шт.

25

87644763

GUIDE

12шт.

26

87344126

BOLT

M14 x 160

26шт.

27

J943445

CROSSBAR

Head Cross

12шт.

28

87435953

ROCKER ARM

Intake

6шт.

29

87435951

SHAFT

6шт.

30

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

12шт.

31

87435952

ROCKER ARM

Exhaust

6шт.
