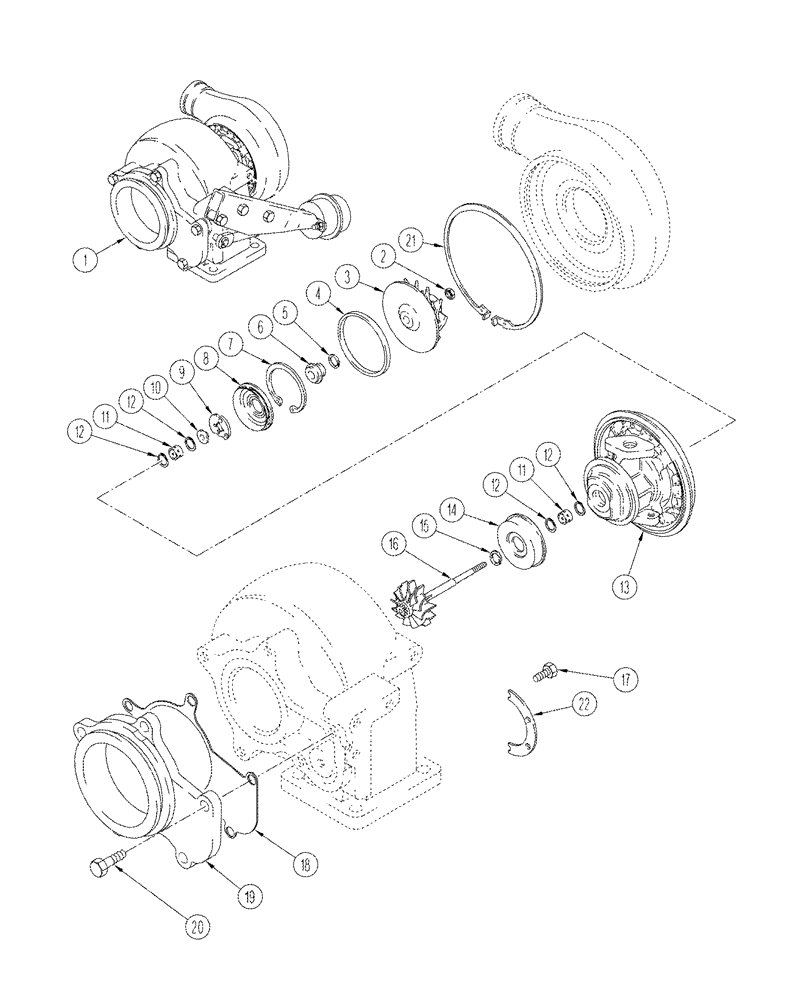

Запчасти Case IH STEIGER 335 (02-12) - TURBOCHARGER ASSEMBLY (02) - ENGINE

J800401

TURBOCHARGER

Inc. 2 - 16, Also See Figure: 02-13

1шт.

JR800401

REMAN-TURBOCHARGER

1шт.

JC538232

CORE-TURBOCHARGER

Return Number

1шт.

1

J591196

CARTRIDGE

Turbocharger

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor and Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J537960

GASKET,0.46mm Thk

Turbocharger Adapter

1шт.

19

J537979

ADAPTER

Turbocharger

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Turbocharger, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
