Запчасти Case IH STEIGER 335 (02-11) - TURBOCHARGER SYSTEM (02) - ENGINE

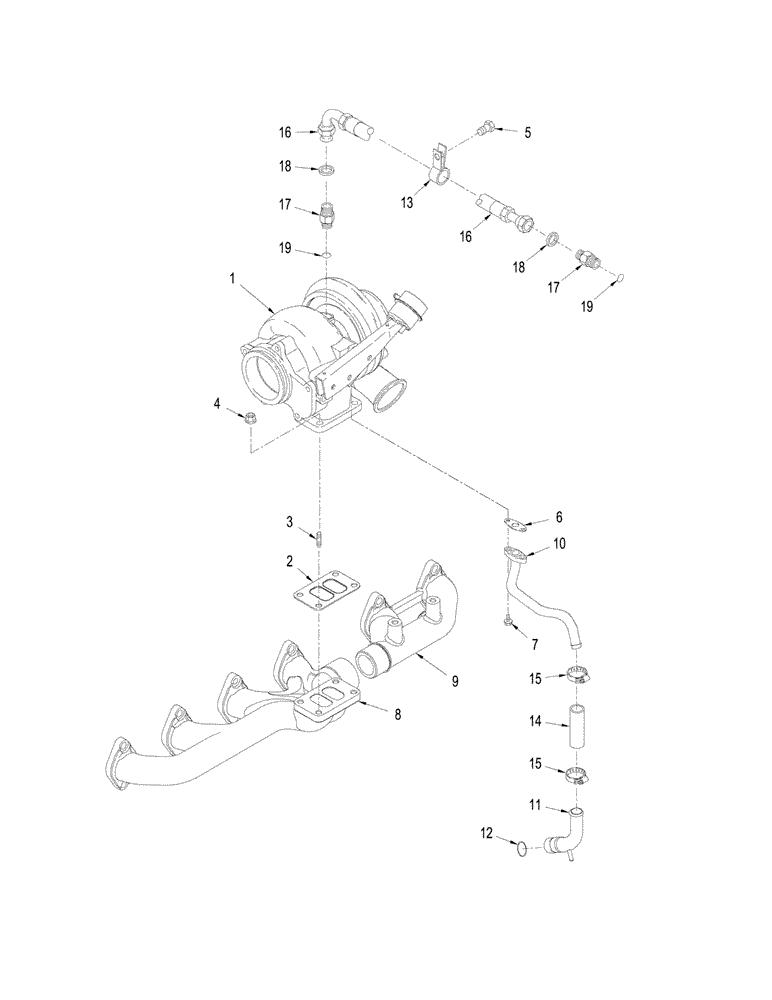

Схема запчастей Case IH STEIGER 335 - (02-11) - TURBOCHARGER SYSTEM (02) - ENGINE
17
8
16
13
16
3
11
19
4
14
2
5
1
12
6
10
15
7
17
18
18
9
15
19

Артикул

Название

Примечание

Количество

1

J800401

TURBOCHARGER

See Figure: 02-12

1шт.

1

JR800401

REMAN-TURBOCHARGER

1шт.

1

JC538232

CORE-TURBOCHARGER

Return Number

1шт.

2

J901356

GASKET,0.5mm Thk

Monting, Turbocharger

1шт.

3

J818823

STUD

M10 x 40

4шт.

4

J818824

FLANGE NUT

M10

4шт.

5

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

6

J937706

GASKET,0.79mm Thk

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

87344862

EXHAUST MANIFOLD

See Figure: 02-10

1шт.

9

87344861

EXHAUST MANIFOLD

See Figure: 02-10

1шт.

10

J945108

TUBE

1шт.

11

J948079

TUBE,0.875" OD

1шт.

12

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

14

J286499

HOSE

76 mm (3")

1шт.

13

87434675

CLAMP,10.16mm ID, 10.41mm Bolt Hole, P Type

1/2" ID

1шт.

15

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

16

87345099

FLEXIBLE HOSE,9.53mm ID x 385mm L, SAE 100R14

1шт.

17

J922789

HYD CONNECTOR

Inc. 18 & 19

2шт.

18

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

19

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

Выбрано товаров: 21
