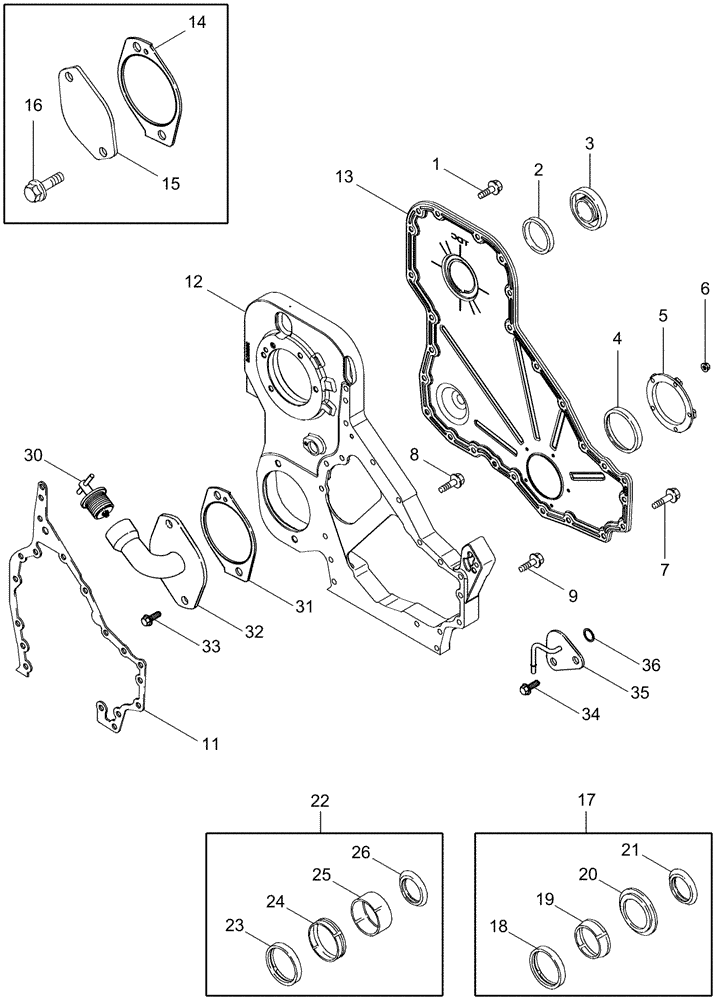

Запчасти Case IH STEIGER 335 (02-09) - FRONT GEAR COVER (02) - ENGINE

1

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

13шт.

2

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

3

J903463

PLUG,M63 x 5

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790 or A77808

1шт.

5

J941786

CARRIER

1шт.

6

87493304

FLANGE NUT

M6

5шт.

7

J926863

FLANGE BOLT

M8 x 50

11шт.

8

J943885

BOLT

M8 x 40

3шт.

9

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J944293

GASKET,1.01mm Thk

Front Gear

1шт.

12

87564445

COVER

Front Gear

1шт.

13

87350310

COVER

Front Gear

1шт.

14

J940245

GASKET,1.27mm Thk

Accessory Drive

1шт.

15

J940246

COVER

Accessory Drive

1шт.

16

857-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

17

A77790

SEAL KIT

Crankshaft, Front, Inc. 22 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

Seal, Oil Front

1шт.

19

NSS

NOT SOLD SEPARAT

Tool

1шт.

20

NSS

NOT SOLD SEPARAT

Tool, Seal Install

1шт.

21

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Dust

1шт.

22

A77808

SERVICE KIT

Crankshaft, Front, Inc. 27 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Oil, Oversized

1шт.

24

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

25

NSS

NOT SOLD SEPARAT

Tool

1шт.

26

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

27

J920706

PLUG

(Not Shown)

1шт.

28

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

(Not Shown)

2шт.

29

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC (Not Shown)

1шт.

30

314441A1

FILLER CAP

Oil

1шт.

31

J940245

GASKET,1.27mm Thk

Oil Fill Tube

1шт.

32

J939033

TUBE,38.1 mm OD x 150.2 mm L

Oil Fill

1шт.

33

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

34

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

35

87358314

3 WAY CONNECTION

Oil Drain

1шт.

36

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Oil Drain

1шт.
