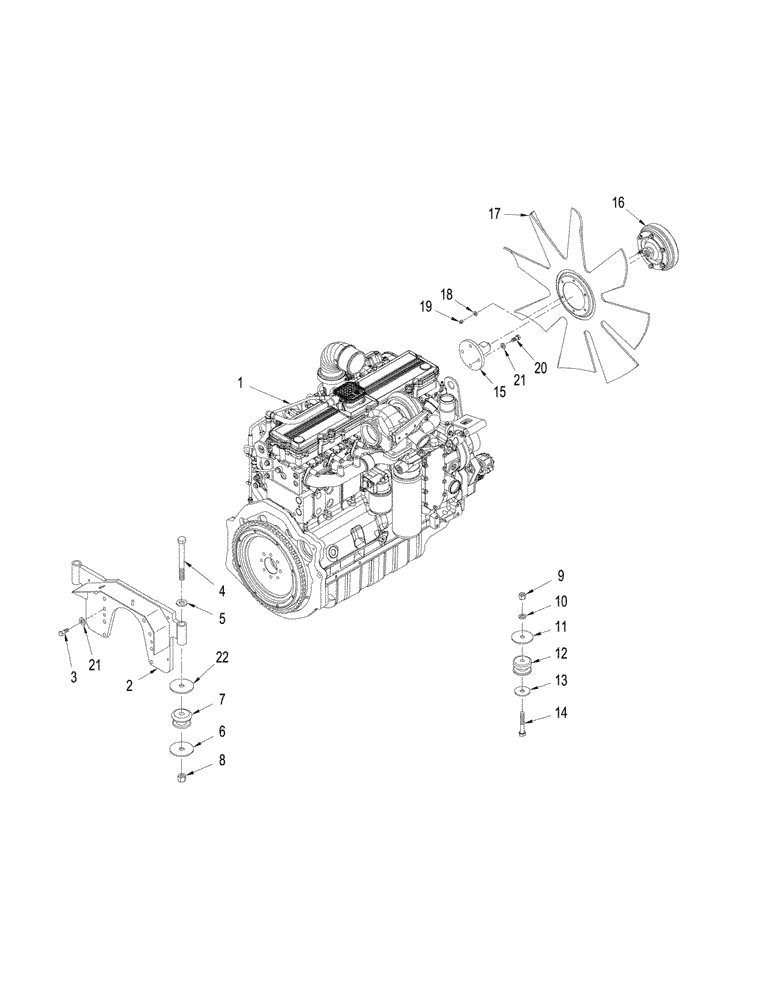

Запчасти Case IH STEIGER 335 (02-07) - ENGINE MOUNTING (02) - ENGINE

1

87728789

ENGINE

335hp, 9.0L

1шт.

1

87539021R

REMAN-BASIC ENGINE

335hp, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

1

87539021C

CORE-BASIC ENGINE

Return Number

1шт.

2

379558A1

HOUSING

Flywheel

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

4

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

5

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

6

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

7

304561A1

ENGINE MOUNT

Rubber, Flywheel End

2шт.

8

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

11

51-128

WASHER

1шт.

12

24-231

RUBBER MOUNTING

Engine Mounting, Fan End

1шт.

13

19-408

WASHER

1шт.

14

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

15

336336A2

SHAFT

Support

1шт.

16

353846A1

DRIVE

Fan Cooling

1шт.

17

314317A1

FAN

1шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

22

331663A1

WASHER

2шт.
