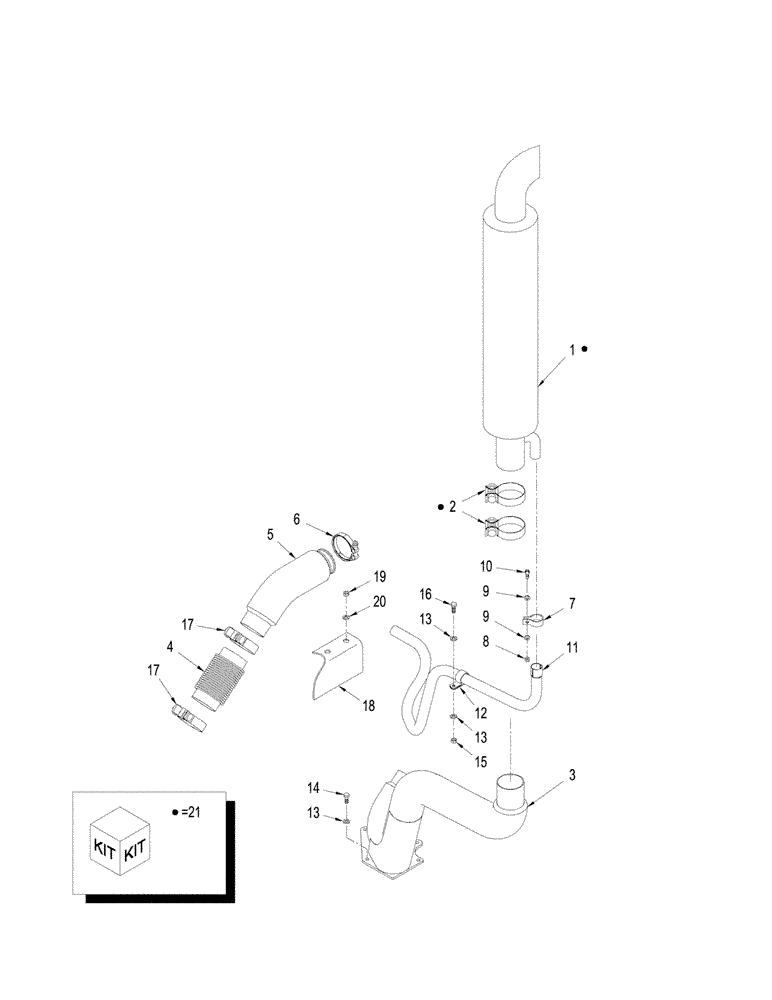

Запчасти Case IH STEIGER 335 (02-06) - EXHAUST SYSTEM (02) - ENGINE

1

359633A2

MUFFLER

without Spark Arrestor

1шт.

1

391769A1

MUFFLER

with Spark Arrestor

1шт.

2

131853A1

CLAMP

1шт.

3

395809A1

TUBE,101.47 mm OD

Insulated

1шт.

4

386743A2

TUBE,101.6 mm ID, 108 mm OD, 270 mm Length

Flexible

1шт.

5

359630A2

TUBE,373 mm Length

Insulated

1шт.

6

A170807

CLAMP,102mm ID

Includes hardware

1шт.

7

334985A1

CLAMP

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

11

359632A3

TUBE

Precleaner

1шт.

12

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

14

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

15

829-1412

NUT,M12, Cl 10.9

1шт.

16

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

17

90-8319T1

CLAMP

Hose

2шт.

18

87448911

SHIELD

Heat

1шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

20

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

21

394848A1

KIT

Muffler, Spark Arresting, Inc. 1 & 2

1шт.
