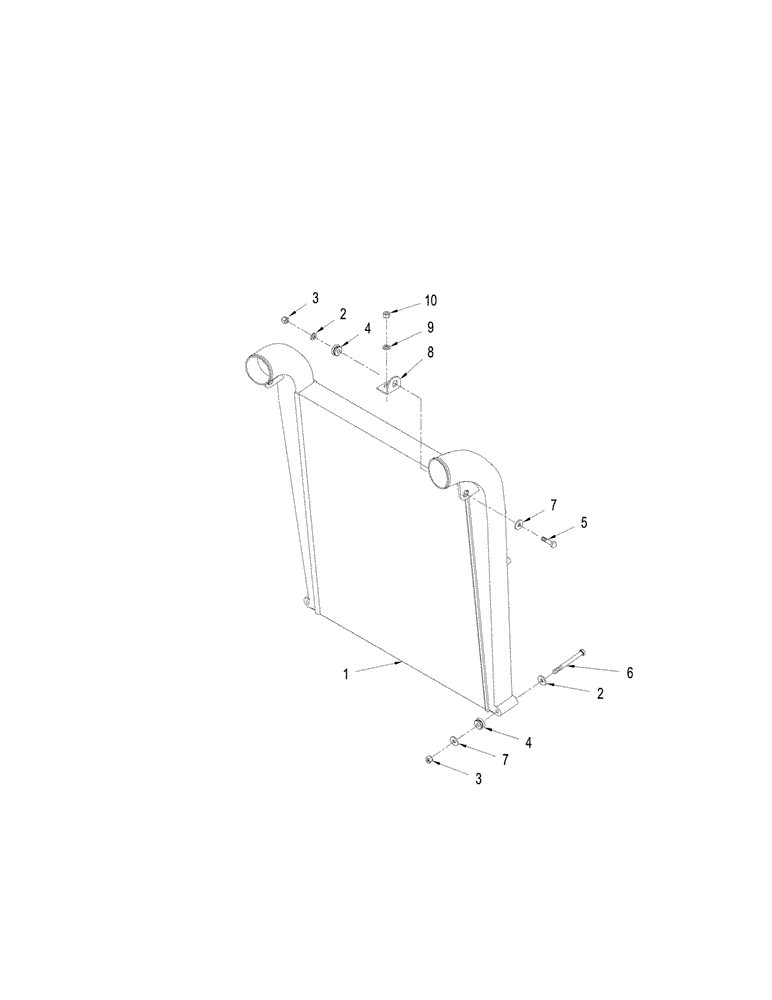

Запчасти Case IH STEIGER 335 (02-05) - AIR COOLER MOUNTING (02) - ENGINE

1

259332A4

AFTERCOOLER

Air

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

4

434177A1

ISOLATOR

Rubber Mounting

4шт.

5

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

6

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

7

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

8

361250A1

BRACKET

Mounting, CAC

1шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
