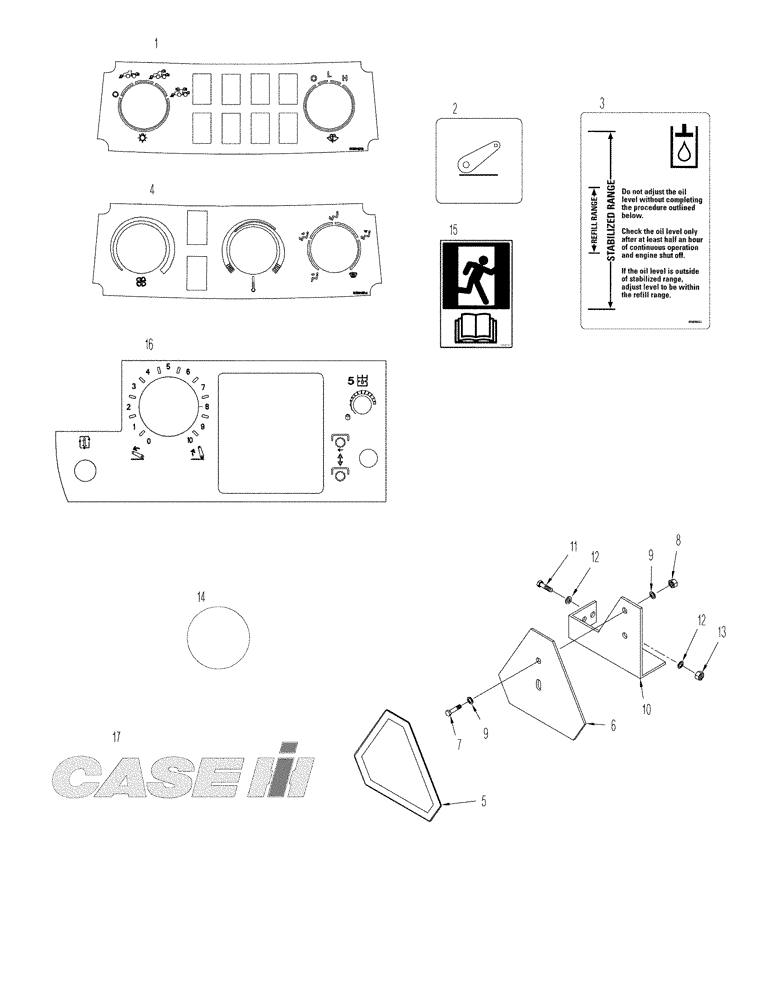

Запчасти Case IH STEIGER 335 (09-52) - DECALS (09) - CHASSIS

1

431230A1

DECAL

Light Panel

1шт.

2

393821A1

DECAL

1шт.

With Three Point Hitch

1шт.

3

434856A1

DECAL

Hydraulic Oil Level

1шт.

4

87450974

DECAL

Automatic Temperature Control

1шт.

311860A1

EMBLEM

Slow Moving Vehicle, Inc. 5 and 6

1шт.

5

311858A1

DECAL

SMV Emblem

1шт.

6

NSS

NOT SOLD SEPARAT

Plate

1шт.

7

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

8

425-104

NUT,1/4"-20, Cl 5

2шт.

9

495-11028

WASHER,1/4", SAE

2шт.

10

431187A1

BRACKET

1шт.

11

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

446562A1

DECAL

Cicular, Blank Opening

1шт.

Without Power Takeoff

1шт.

15

329051A1

DECAL

Emergency Exit

1шт.

16

87314384

DECAL

Right-Hand Armrest

1шт.

Without Three Point Hitch

1шт.

17

87563598

DECAL

CASE IH Logo, Rear Roof, (200 x 48mm)

1шт.
