Запчасти Case IH STEIGER 335 (02-03) - AIR INTAKE (02) - ENGINE

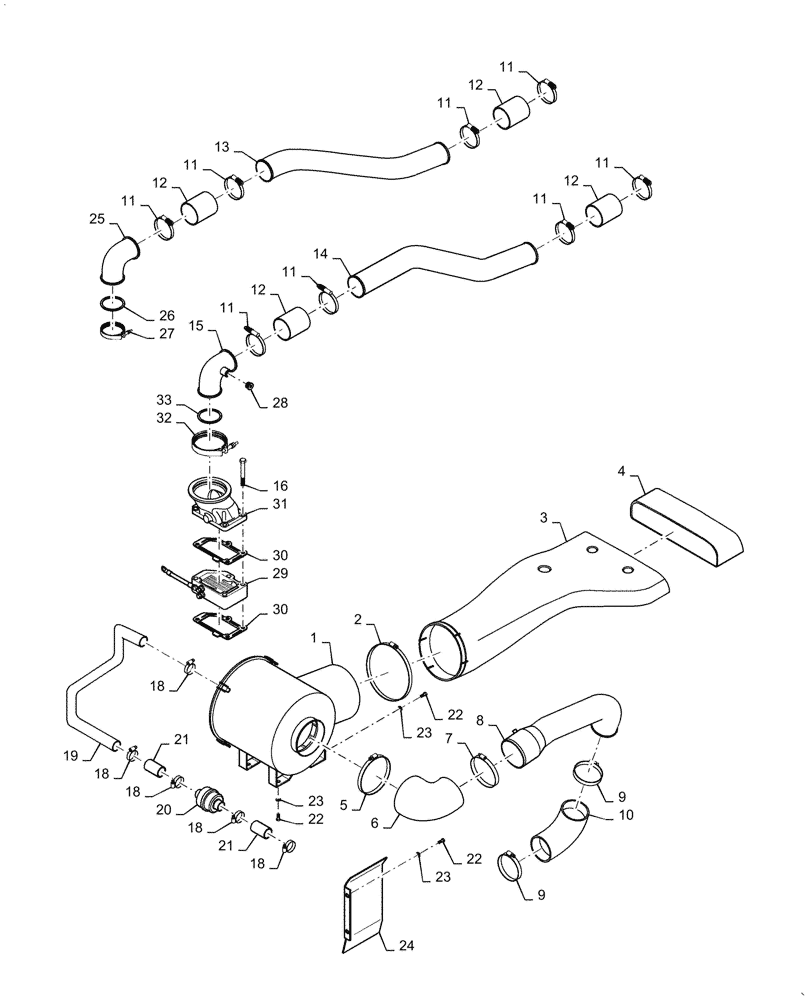

Схема запчастей Case IH STEIGER 335 - (02-03) - AIR INTAKE (02) - ENGINE
25
18
13
5
3
30
27
28
18
30
11
6
20
26
14
23
21
12
11
22
2
12
18
11
11
23
32
1
23
31
8
9
10
11
15
4
24
11
7
9
21
12
29
22
18
16
11
11
19
18
12
33
22

Артикул

Название

Примечание

Количество

1

87449306

AIR CLEANER

See Figure: 02-04

1шт.

2

214-31160

HOSE CLAMP,9-1/4" - 10-1/8", HD Worm

1шт.

3

87449310

AIR DUCT

Air Intake

1шт.

4

341855A2

FOAM INSULATION

1шт.

5

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

6

87418236

ELBOW

90, Reducing

1шт.

7

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

8

87449100

AIR INTAKE TUBE,101.6-127 mm OD x 537, 165.2 mm L

Air Intake

1шт.

9

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

2шт.

10

335853A1

ELBOW

Air Intake

1шт.

11

87599619

CLAMP,90.5mm - 98.3mm

8шт.

12

87340760

INTAKE AIR HOSE,88.90 mm ID x 110.00

4шт.

13

87449065

AIR INTAKE TUBE,3.5" OD

Charged Air

1шт.

14

364260A3

AIR INTAKE TUBE,88.9 mm OD, 773.3, 150.1 mm Length

1шт.

15

J918327

ELBOW

90, Air Intake

1шт.

16

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

4шт.

18

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

19

87449319

TUBE

Aspirator

1шт.

20

307123A1

VALVE

Aspirator Exhaust

1шт.

21

370853A2

HOSE

Aspirator, Cut From 31-2901

3шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

6шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

24

87449316

SHIELD

Heat

1шт.

25

87450405

ELBOW

90, Air Intake

1шт.

26

87434592

SEAL,2.62mm Thk x 82.22mm ID

1шт.

27

87434593

CLAMP,104.39mm - 105.66mm

V-Band

1шт.

28

J008465

PLUG

1шт.

29

87753829

HEATER

Air Intake

1шт.

30

87335272

GASKET

Connection

2шт.

31

87340026

AIR INTAKE

1шт.

32

J069053

CLAMP,66.54mm ID

V-Band

1шт.

33

J883284

O-RING,0.07" Thk x 2.364" ID, -36

Air Transfer

1шт.

Выбрано товаров: 32
