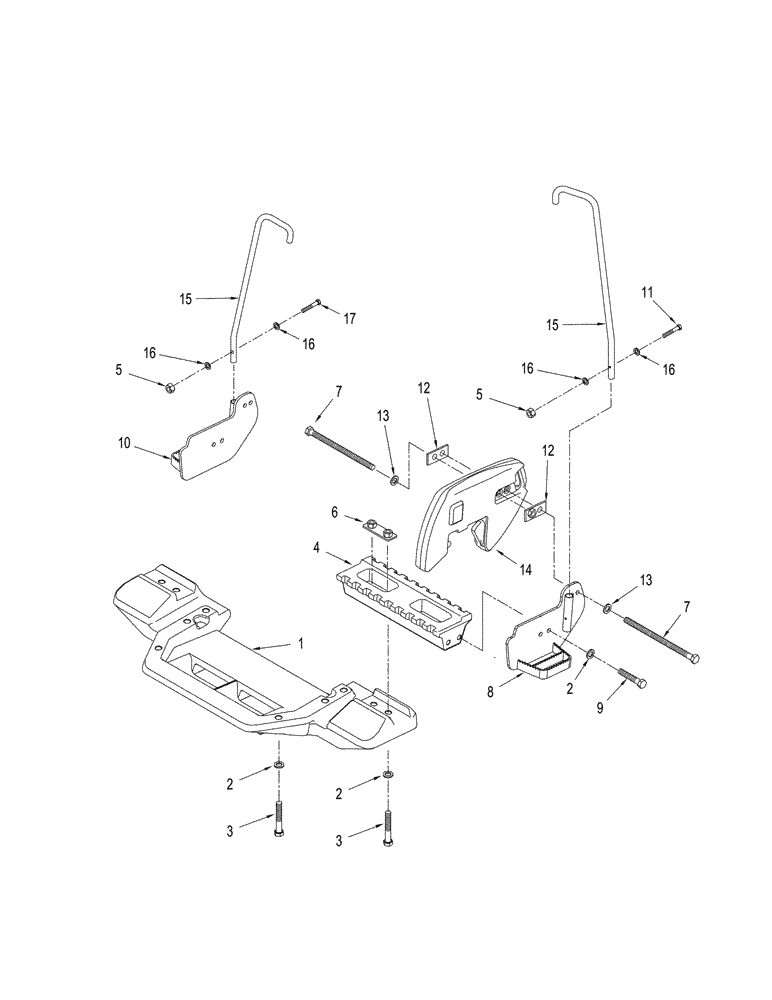

Запчасти Case IH STEIGER 335 (09-46) - WEIGHTS - FRONT FRAME (09) - CHASSIS

1

413311A1

FRAME

Hanger

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

14шт.

3

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

10шт.

4

413312A1

INSERT

Nine-Weight

2шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

6

413313A1

BRACKET

2шт.

7

627-16320

BOLT,Hex, M16 x 2 x 320mm, Cl 10.9, Full Thd

4шт.

8

87309541

PLATE

Weight, Right-Hand

1шт.

9

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

11

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

10

87309542

PLATE

Weight, Left-Hand

1шт.

12

229483A2

RETAINER

Suitcase Weight

4шт.

13

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

14

405846A3

WEIGHT

45 kg (100 lb)

1шт.

15

413316A1

GRAB RAIL

2шт.

16

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

17

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.
