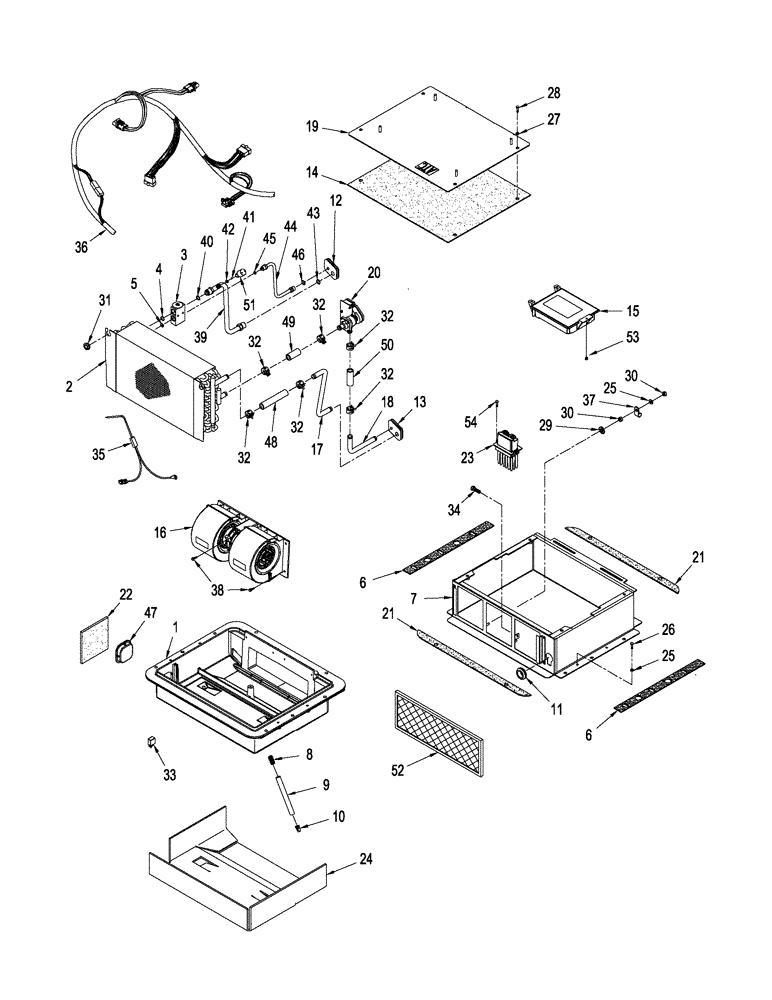

Запчасти Case IH STEIGER 335 (09-43) - AIR CONDITIONING - CLIMATE CONTROL UNIT, WITH AUTO TEMP CONTROL (09) - CHASSIS

87365878

AIR CONDITIONER

Inc. 1 - 53

1шт.

1

322996A1

BOX

Lower Evaporator

1шт.

2

86990262

CORE

Evaporator and Heater

1шт.

3

386535A1

VALVE

Expansion, HFC-134a

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16"

1шт.

5

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x 1/16"

1шт.

6

322994A1

GASKET,3mm Thk

Flange

4шт.

7

87306776

CASE ASSY.

Top HVAC

1шт.

8

1250522C3

FITTING

Drain

2шт.

9

1977334C1

HOSE

Condensation Drain, 610 mm (24-1/8"), Cut From 198091CX

2шт.

10

109239C2

CHECK VALVE

Evaporation Drain

2шт.

11

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

12

322989A1

GROMMET

A/C

1шт.

13

322990A1

GROMMET

Heater

1шт.

14

87324951

GASKET,3mm Thk

Top Cover, HVAC

1шт.

15

87365492

MODULE

Automatic Temperature Control

1шт.

15

84268957R

REMAN ELECT CONTROL

AutomaticTemperature Control

1шт.

15

84268957C

CORE-ELECTRONIC CONT

Return Number

1шт.

16

323610A1

BLOWER

Cab HVAC

1шт.

16

84222524R

REMAN-BLOWER

Cab HVAC

1шт.

16

84222524C

CORE-BLOWER

Return Number

1шт.

17

322985A1

HEATER TUBE

Outlet

1шт.

18

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

Inlet

1шт.

19

87306495

COVER

Top, HVAC

1шт.

20

427356A1

CONTROL VALVE

Heater

1шт.

21

322995A1

GASKET,3mm Thk

Flange, HVAC

4шт.

22

87306773

FOAM INSULATION

Foil, Side, HVAC

1шт.

23

87306706

TERMINAL CONNECTOR

Linear Blower

1шт.

24

324484A1

INSULATOR

Foil, Bottom

1шт.

25

892-11006

LOCK WASHER,M6

5шт.

26

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

27

892-11008

LOCK WASHER,8mm ID

4шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

29

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

31

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

32

1954736C1

HOSE CLAMP,#24

Heater

6шт.

33

105849A1

RELAY

Micro, 12V

1шт.

34

87454442

SENSOR

Thermometer Bullet

1шт.

35

323016A1

SENSOR

Temperature, HVAC

1шт.

36

84292018

WIRE HARNESS

Automatic Temperature Control, HVAC

1шт.

37

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

38

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

39

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

A/C Suction, Inc. 40 - 42

1шт.

40

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16"

1шт.

41

1250594C2

CORE

Evaporator / Heater

1шт.

42

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

1шт.

43

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16"

1шт.

44

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

A/C Liquid, Inc. 45, 46

1шт.

45

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16" ID x 1/16"

1шт.

46

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x 1/16"

1шт.

47

368313A1

PLASTIC PLUG

HVAC Corner

1шт.

48

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Heater Return, Cut from 97252CX

1шт.

49

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Heater Supply, Cut from 97252CX

1шт.

50

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Heater Supply, Cut from 97252CX

1шт.

51

87323829

SWITCH, A/C LOW PRES

1шт.

52

87409377

FILTER

Recirculated Air

1шт.

53

832-46404

NUT,M4 x .7, Cl 8

1шт.

54

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.
