Запчасти Case IH STEIGER 335 (09-41) - AIR CONDITIONING - AIR FILTER HOUSING ASSEMBLY (09) - CHASSIS

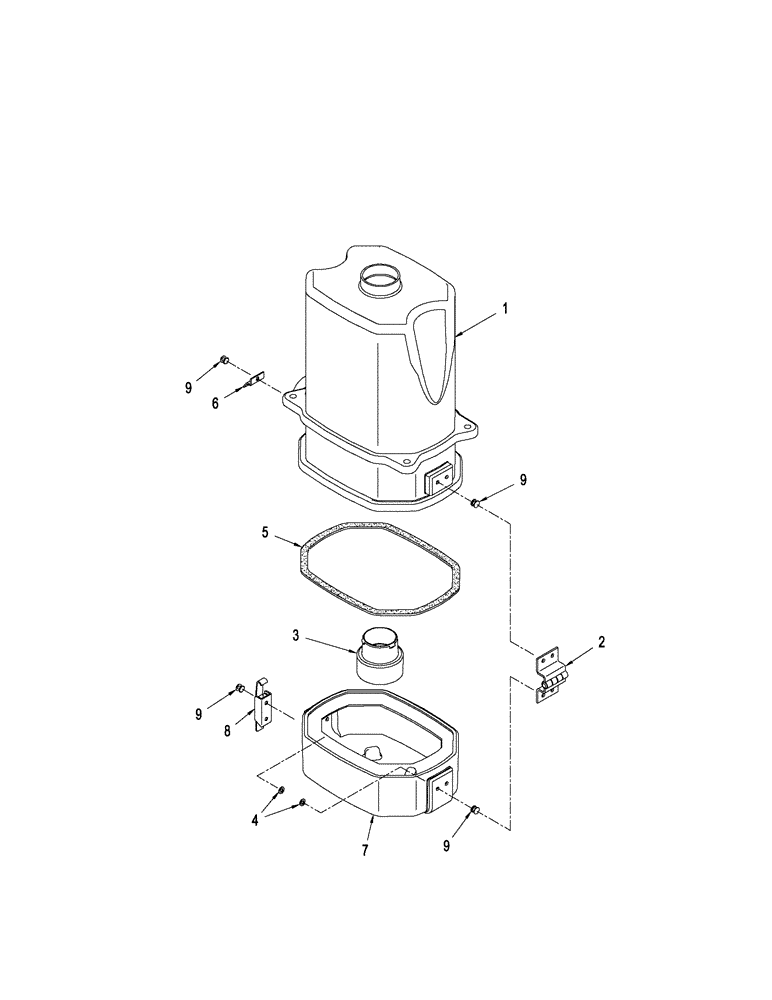

Схема запчастей Case IH STEIGER 335 - (09-41) - AIR CONDITIONING - AIR FILTER HOUSING ASSEMBLY (09) - CHASSIS
3
9
6
9
1
9
9
7
2
5
8
4

Артикул

Название

Примечание

Количество

87596194

HOUSING

Air Filter, Inc. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Filter, Upper

1шт.

2

319969A1

HINGE

Air Filter Housing

1шт.

3

307016A1

COUPLING

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

7шт.

5

87598827

RUBBER SEAL,5.08mm W x 680mm L x 4.76mm Thk

Cut From 87432208

1шт.

6

307021A2

CLIP

Air Filter Housing

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, Filter, Lower

1шт.

8

87596198

LATCH

Air Filter Housing

1шт.

9

151-510

RIVET,Pop, 3/16" x .450"

7шт.

Выбрано товаров: 10
