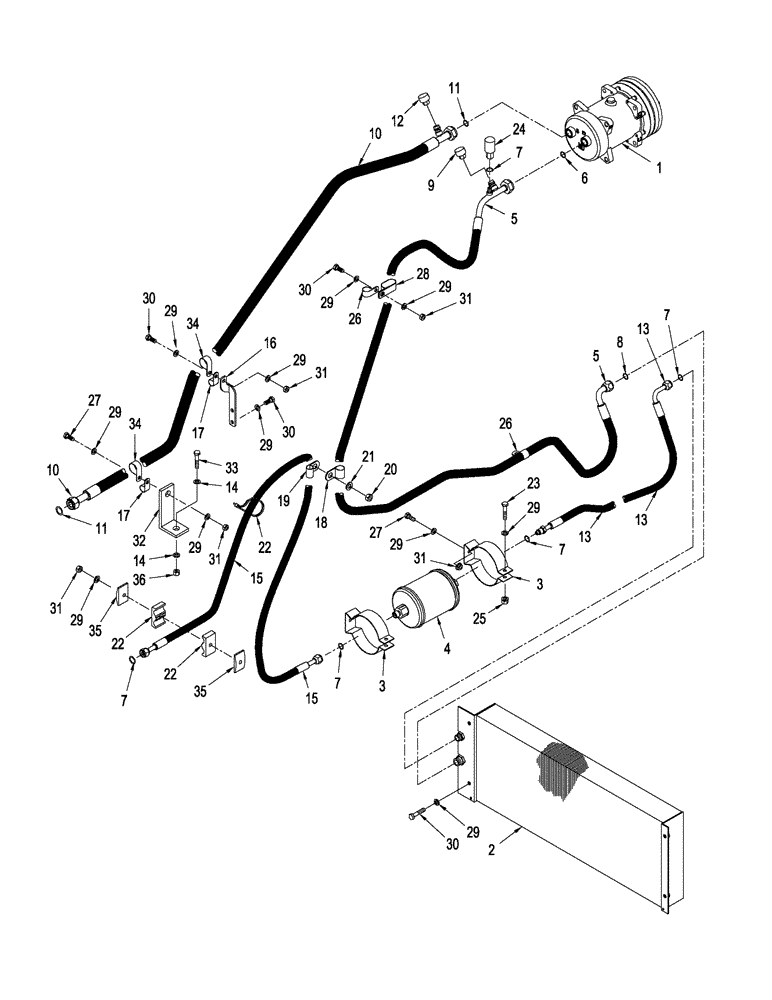

Запчасти Case IH STEIGER 335 (09-39) - AIR CONDITIONING SYSTEM (09) - CHASSIS

1

86993462

AIRCOND. COMPRESSOR

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

STEIGER 335 (8/07-)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

2

87315600

CONDENSER

1шт.

3

433723A1

CLAMP

2шт.

4

295006A1

RECEIVER-DRYER

134a

1шт.

5

87580496

A/C HOSE

Compressor To Condenser, 2695 mm (106"), Inc. 6 - 9

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

5шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

122554A1

CAP

1шт.

10

87580503

A/C HOSE

Cab To Compressor, 2563 mm (101"), Inc. 11 and 12

1шт.

11

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

12

122553A1

CAP

1шт.

13

87453137

HOSE ASSY.

Consenser To Dryer, 965 mm (38"), Inc. 7

1шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

15

87453138

HOSE ASSY.

Dryer To Cab, 2823 mm (111"), Inc. 7

1шт.

16

87312406

BRACKET, SUPPORTING

1шт.

17

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

18

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

2шт.

19

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

50-2534T1

CLAMP

2шт.

23

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

24

284273A2

SWITCH, A/C HIGH PRE

High Pressure

1шт.

25

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

26

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

28

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

7шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

32

87452138

BRACKET

Support

1шт.

33

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

1шт.

34

515-22254

CLAMP,1", Insul, 5/16" Bolt

2шт.

35

50-2533T1

PLATE

2шт.

36

829-1416

NUT,M16, Cl 10

1шт.
