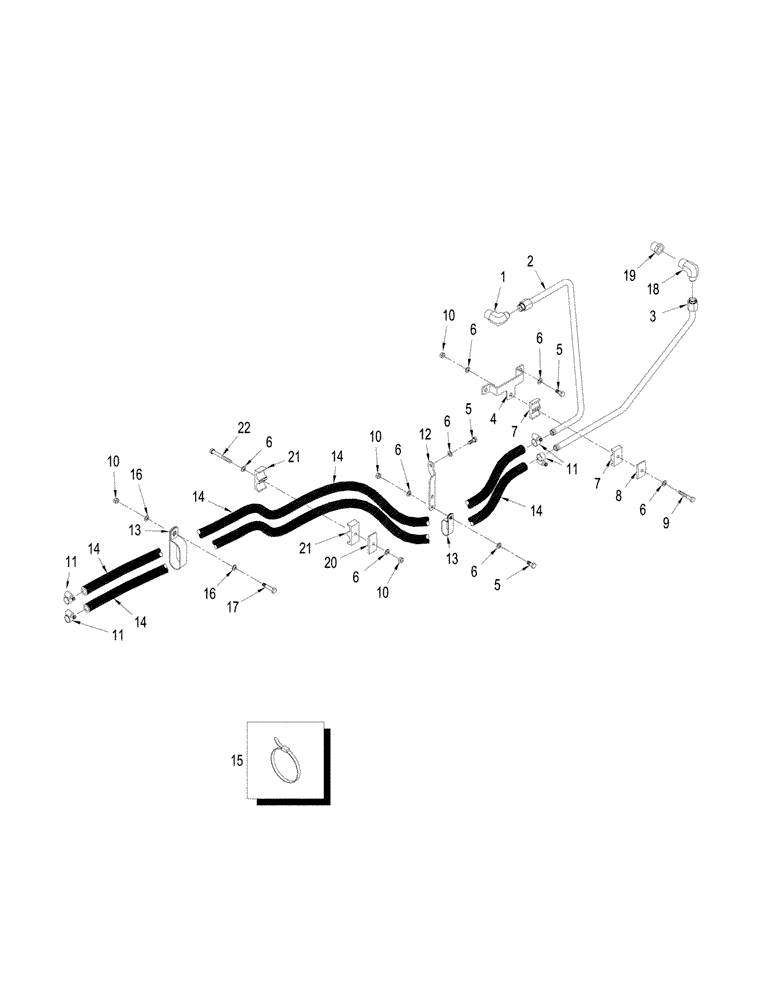

Запчасти Case IH STEIGER 335 (09-37) - HEATER - HOSES (09) - CHASSIS

1

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

2шт.

2

87448889

HEATER TUBE

Supply

1шт.

3

363289A1

TUBE

Return

1шт.

4

87448031

BRACKET

Mounting, Heater Tubes

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

7

50-2531T1

CLAMP

Tube

2шт.

8

50-2532T1

PLATE

Clamp Mounting

1шт.

9

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

11

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

12

364057A1

BRACKET

Mounting, Heater Hoses

1шт.

13

R54363

CLAMP

Hose

3шт.

14

364159A1

HOSE,15.88 mm ID x 76.50 mm

Supply / Return

2шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

18

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

19

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

20

50-2533T1

PLATE

Clamp Mounting

1шт.

Used with ACCUSTEER applications

1шт.

21

50-2534T1

CLAMP

Hose

2шт.

Used with ACCUSTEER applications

1шт.

22

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

Used with ACCUSTEER applications

1шт.
