Запчасти Case IH STEIGER 335 (02-01) - RADIATOR - HOSES AND TUBES (02) - ENGINE

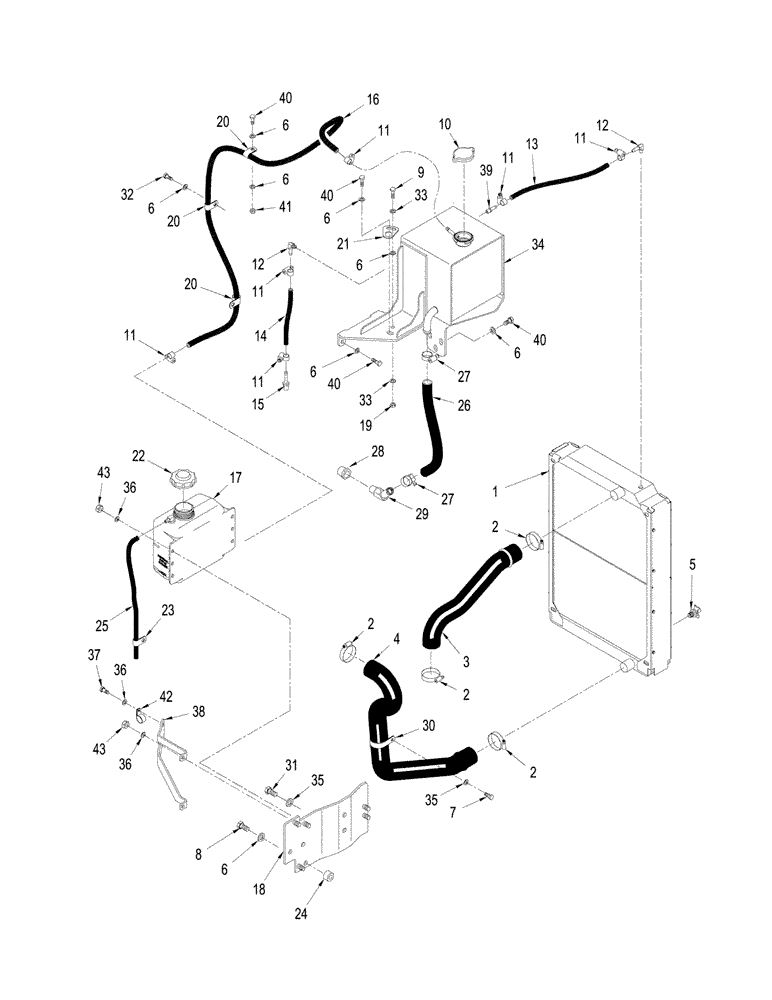

Схема запчастей Case IH STEIGER 335 - (02-01) - RADIATOR - HOSES AND TUBES (02) - ENGINE
36
40
42
35
34
39
2
29
15
11
8
7
38
11
43
3
1
12
6
2
14
27
24
36
23
36
16
13
31
25
9
2
11
19
43
17
6
12
33
2
11
40
6
41
11
20
35
6
5
6
20
11
26
6
32
6
27
37
30
40
18
40
22
10
33
20
28
6
21
4

Артикул

Название

Примечание

Количество

1

87311249

RADIATOR

1шт.

2

L115548

CLAMP,57.15mm - 79.38mm

4шт.

3

87311721

RADIATOR HOSE,57.10 mm ID x 423.00 mm, SAE 20R4

Radiator, Upper

1шт.

4

313877A2

HOSE,57.20 mm ID x 629.00 mm, SAE J20 or SAE 20R4 CLASS D1

Lower

1шт.

5

9672304

DRAINCOCK/TAP SUPPLY

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

19шт.

7

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

10

A170241

RADIATOR CAP

1шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

12

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

2шт.

13

373653A1

HOSE,0.25" ID x 13.50"

Vent To Radiator

1шт.

14

31-2691

HOSE,6.4 mm ID x 228.60 mm

Engine Vent, Cut From A21561

1шт.

15

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

1шт.

16

435458A1

HOSE

1489 mm, Cut From Bulk, Deaeration Tank to Coolant Recovery Bottle

1шт.

17

A184395

RESERVOIR

Coolant Recovery

1шт.

18

430216A1

BRACKET

Mounting, Coolant Recovery Bottle

1шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

20

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

21

406622A1

LOCKING PLATE

1шт.

22

238903A1

FILLER CAP

Coolant Recovery Bottle

1шт.

23

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

24

372947A1

SPACER

1шт.

25

31-3063

HOSE,6.4 mm ID x 406.40 mm

Overflow, Coolant Recovery Bottle; Order 31-1182, and Cut to Required Length

1шт.

26

373657A1

HOSE,19.10 mm ID x 351.00 mm

Engine Fill, Cut From 32-297

1шт.

27

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

28

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

29

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

1шт.

30

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

31

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

32

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

33

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

34

87516695

TANK

Deaeration

4шт.

35

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

37

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

38

373057A2

BRACKET

Support

1шт.

39

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

1шт.

40

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

41

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

42

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

43

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

Выбрано товаров: 43
