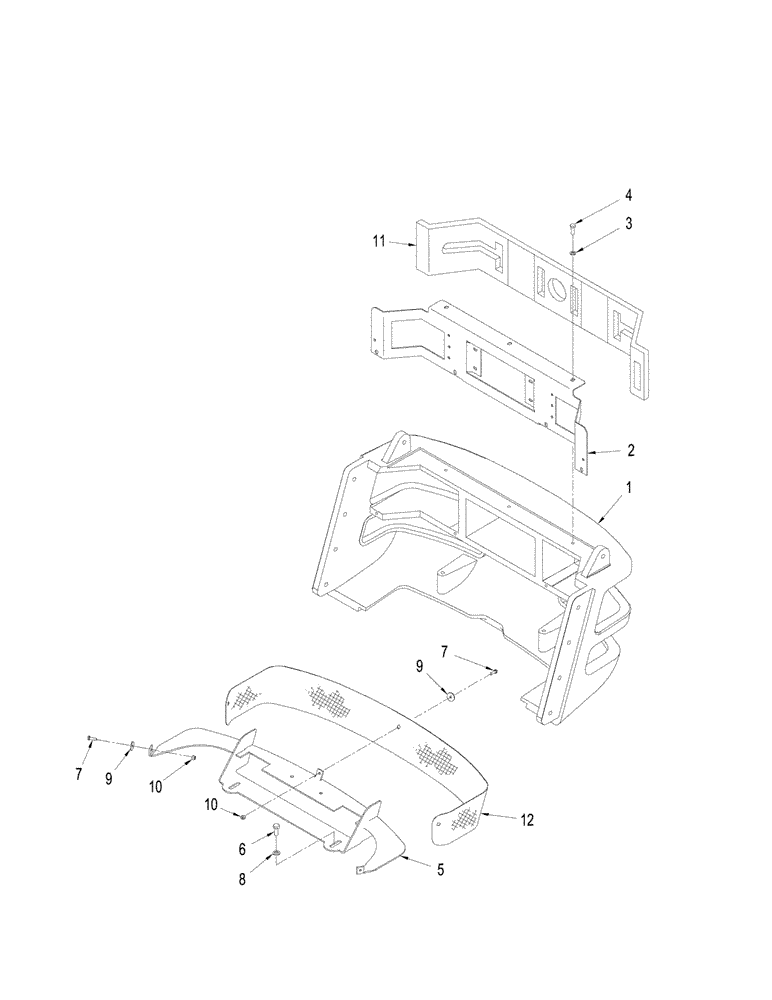

Запчасти Case IH STEIGER 335 (09-31) - BUMPER (09) - CHASSIS

1

431458A1

BUMPER

Front

1шт.

2

329923A3

BRACKET

Mounting, Headlamps

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

5

367518A3

BRACKET, SUPPORTING

Screen

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

3шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

10

832-10406

NUT,M6 x 1, Cl 8

3шт.

11

412095A1

SEAL

Headlamp Mounting

1шт.

12

333795A2

SCREEN

Bumper

1шт.
