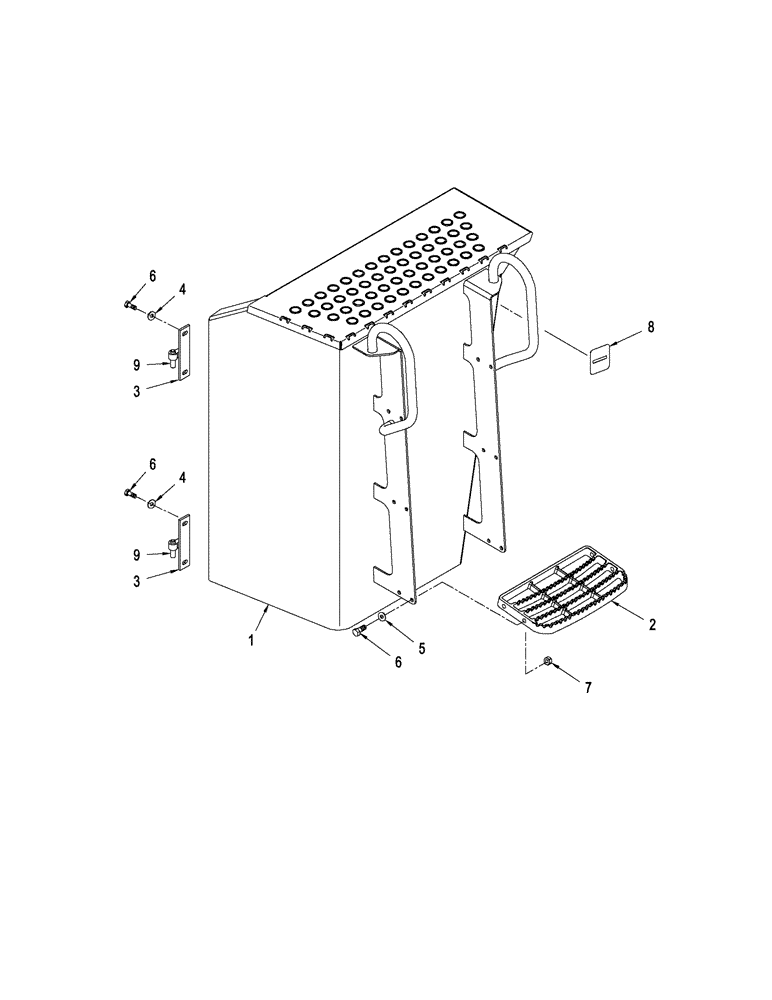

Запчасти Case IH STEIGER 335 (09-30) - BATTERY DOOR ASSEMBLY (09) - CHASSIS

1

87667016

STEP

Battery, RH

1шт.

2

87542875

STEP

Lower, Battery Door

3шт.

3

87582012

PLATE

Hinge

2шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Battery Door

16шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

12шт.

8

87613511

DECAL

Lock Cover

1шт.

9

448719A1

HINGE

Battery Door

4шт.
