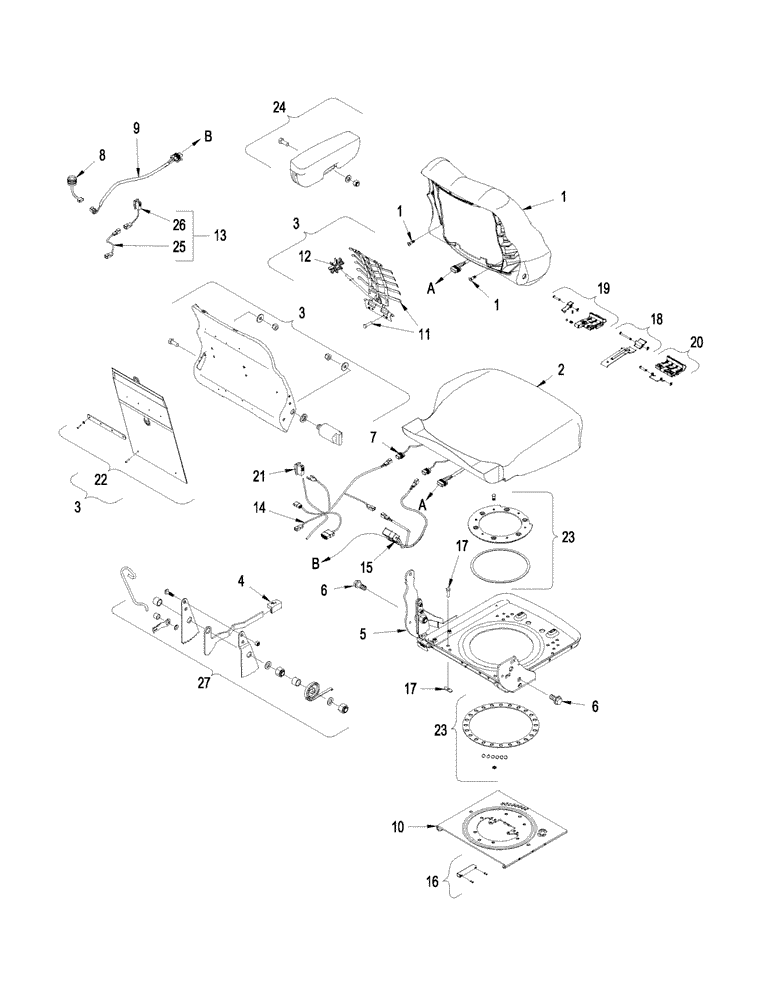

Запчасти Case IH STEIGER 335 (09-24) - SEAT - CUSHION ASSEMBLY (09) - CHASSIS

87553808

SEAT ASSY.

Cloth, without Heat, Inc. 1 - 7, 10, Serial Range: -Z8F111501

1шт.

87752523

SEAT ASSY.

Cloth, without Heat, Inc. 1 - 7, 10, Start Serial: Z8F111501

1шт.

87553810

SEAT ASSY.

Cloth, Heated, Inc. 1 - 24, Serial Range: -Z7F108366

1шт.

87643371

SEAT ASSY.

Cloth, Heated, Air 2000, Inc. 1 - 24, Serial Range: Z7F108366-Z8F111501

1шт.

87752526

SEAT ASSY.

Cloth, Heated, Air 2000, Inc. 1 - 24, Start Serial: Z8F111501

1шт.

87553440

SEAT ASSY.

Cloth, Heated, Positive Response Suspension, Inc. 1 - 24, Serial Range: -Z7F108318

1шт.

87643377

SEAT ASSY.

Cloth, Heated, Air 2000, Positive Response Suspension, Inc. 1 - 24, Serial Range: Z7F108318-Z8F111501

1шт.

87752528

SEAT ASSY.

Cloth, Heated, Air 2000, Positive Response Suspension, Inc. 1 - 24, Start Serial: Z8F111501

1шт.

84162208

SEAT ASSY.

Clothe, Confetti-Wheat, With 2 Position Heat, Without Positive Response

1шт.

87553442

SEAT ASSY.

Leather, Heated, Inc. 1 - 24

1шт.

1

373476A1

CUSHION

Backrest, Cloth, without Heat

1шт.

1

87395385

CUSHION

Backrest, Cloth, Heated, Serial Range: -Z7F108318

1шт.

1

87607891

CUSHION

Backrest, Cloth, Heated, Start Serial: Z7F108318

1шт.

1

87397614

SEAT CUSHION

Leather, Heated

1шт.

2

87347893

SEAT CUSHION

Cloth, without Heat

1шт.

2

87395384

SEAT CUSHION

Cloth, Heated, Serial Range: -Z7F108318

1шт.

2

87607890

SEAT CUSHION

Cloth, Heated, Start Serial: Z7F108318

1шт.

2

87397613

CUSHION

Leather, Heated

1шт.

2

87758230

SEAT CUSHION

Bottom, Cloth, Confettie- Wheat, 2 Position Heat, Used with 84162208 Seat Assy.

1шт.

3

86994155

ASSEMBLY

Seat Back, with Lumber & Pouch, Inc. 11, 12 & 22

1шт.

4

87416475

KNOB

Recline Control

1шт.

5

87590287

SUPPORT

Lower, Seat Pan

1шт.

6

830-1110

NUT,Weld, M10

1шт.

7

86400227

SWITCH,Two Connectors, 90° Terminals

Operator Pressence

1шт.

8

87749302

SWITCH

Heater, 2 Position, Round Rocker, Serial Range: -Z7F108318

1шт.

8

87607893

SWITCH ASSY

Heater, 3 Position, Round Rocker, Start Serial: Z7F108318

1шт.

9

87395390

HARNESS

Heater, Center Section

1шт.

10

87347956

SERVICE KIT

Lower Swivel

1шт.

11

87308130

SEAT BACK ADJUST DEV

Lumbar, Inc. 12

1шт.

12

87037462

SEAT BACK ADJUST DEV

Lumbar Knob

1шт.

13

87347958

SERVICE KIT

Operators Presence Control, Positive Response Seat, Inc. 27 & 28

1шт.

14

87347944

SERVICE KIT

Harness, Suspension

1шт.

15

84239657

CONTROLLER

Heater, Resistor

1шт.

16

302016A1

PACKAGE,SERVICE

Slide Pucks

1шт.

17

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

1шт.

18

87347934

LATCH

Seat Slide

1шт.

19

87347942

SERVICE KIT

Swivel Control

1шт.

20

87347941

SERVICE KIT

Fore / Aft Slide Control

1шт.

21

87347940

ROCKER SWITCH

Height Control, with 90 Degree Elbow

1шт.

22

86994172

SERVICE KIT

Manual Holder

1шт.

23

87347936

SERVICE KIT

Swivel

1шт.

24

87347939

SERVICE KIT

Armrest, Left-Hand, Cloth, without Heat

1шт.

24

87397615

ARMREST

Cloth, LH, Heated, Serial Range: -Z7F108366

1шт.

24

86994250

ARMREST

Cloth, LH, Heated, Start Serial: Z7F108366

1шт.

24

87620257

ARMREST

Cloth, LH, Heated, Positive Response Seat

1шт.

24

87620258

ARMREST

Left-Hand, Leather, Heated (3 Holes without Switches)

1шт.

25

87626130

HARNESS

Operator Ride Control, Positive Response Suspension, From Switch to Dampener Control Box

1шт.

26

87611650

SWITCH

Operator Ride Control, Positive Response Suspension

1шт.

27

86994165

SEAT ACCESSORY

Recliner Control

1шт.
