Запчасти Case IH STEIGER 335 (09-23) - SEAT - OPERATORS (09) - CHASSIS

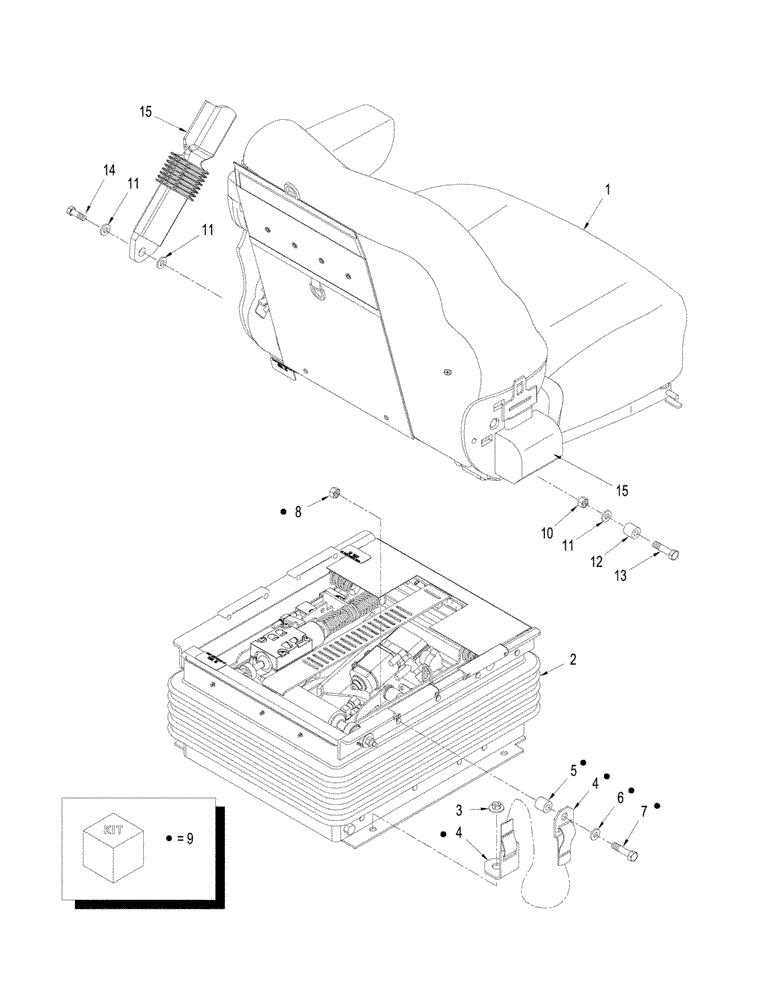

Схема запчастей Case IH STEIGER 335 - (09-23) - SEAT - OPERATORS (09) - CHASSIS
2
9
5
11
15
9
12
11
3
9
9
4
11
7
9
14
9
15
9
6
13
10
9
4
8
1

Артикул

Название

Примечание

Количество

1

87553808

SEAT ASSY.

Cloth, without Heat, Air 2000, See Figure: 09-24, Serial Range: -Z8F111501

1шт.

1

87752523

SEAT ASSY.

Cloth, without Heat, Air 2000, See Figure: 09-24, Start Serial: Z8F111501

1шт.

1

87553810

SEAT ASSY.

Cloth, Heated, See Figure: 09-25, Serial Range: -Z7F108366

1шт.

1

87643371

SEAT ASSY.

Cloth, Heated, Air 2000, See Figure: 09-24, Serial Range: Z7F108366-Z8F111501

1шт.

1

87752526

SEAT ASSY.

Cloth, Heated, Air 2000, See Figure: 09-24, Start Serial: Z8F111501

1шт.

1

87553440

SEAT ASSY.

Cloth, Heated, Positive Response Suspension, See Figure: 09-24, Serial Range: -Z7F108318

1шт.

1

87643377

SEAT ASSY.

Cloth, Heated, Air 2000, Positive Response Suspension, See Figure: 09-24, Serial Range: Z7F108318-Z8F111501

1шт.

1

87752528

SEAT ASSY.

Cloth, Heated, Air 2000, Positive Response Suspension, See Figure: 09-24, Start Serial: Z8F111501

1шт.

1

87553442

SEAT ASSY.

Leather, Heated, Positive Response Suspension, See Figure: 09-24

1шт.

2

87395380

SUSPENSION

See Figure: 09-25

1шт.

2

87395381

SUSPENSION

Positive Response, See Figure: 09-26

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

4

389277A1

SAFETY BELT ,48mm W x 283mm L

2шт.

Scraper Application

1шт.

5

NSS

NOT SOLD SEPARAT

Spacer

2шт.

Scraper Application

1шт.

6

496-31041

WASHER,13/32" x 13/16" x .134", HDN

2шт.

7

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

2шт.

8

231-4246

LOCK NUT,3/8"-16, GB

2шт.

9

87431487

FIP KIT

Tether Belt

1шт.

Scraper Application

1шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

12

87313413

TUBE SPACER

Steel, .875" x .50"

1шт.

13

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

14

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

15

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

Выбрано товаров: 27
