Запчасти Case IH STEIGER 335 (09-18) - CONSOLE - RIGHT HAND ARMREST, ELECTRIC (09) - CHASSIS

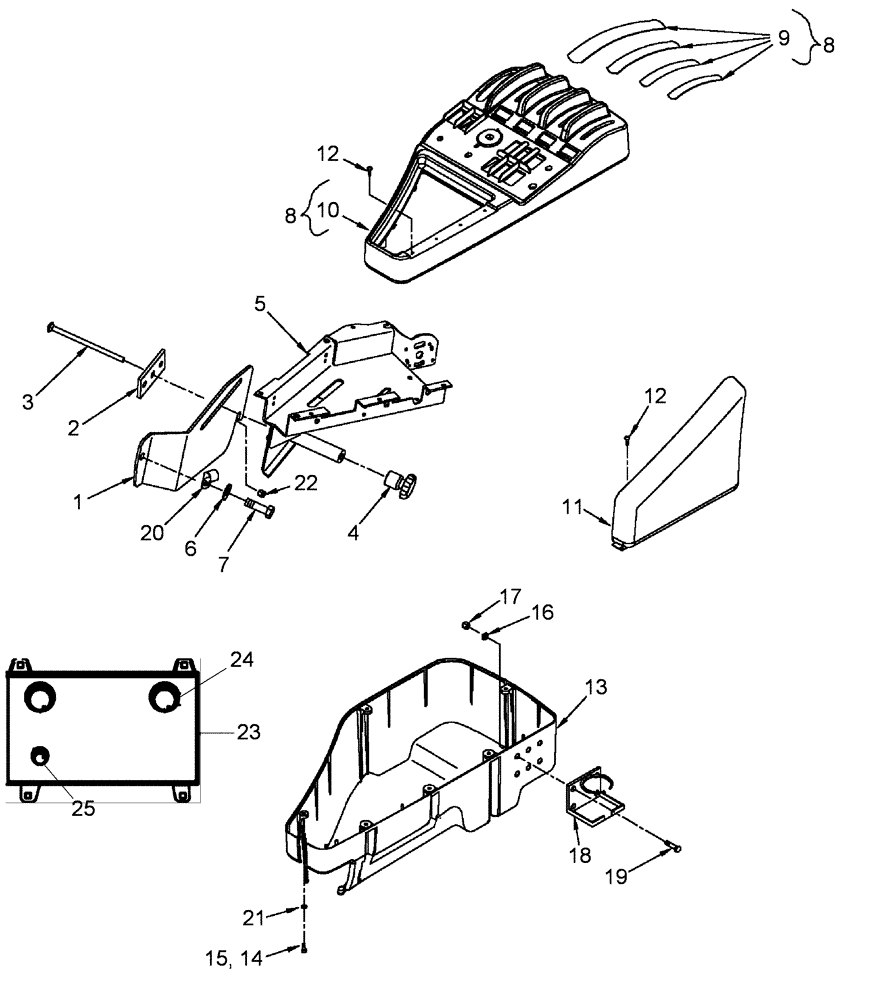

Схема запчастей Case IH STEIGER 335 - (09-18) - CONSOLE - RIGHT HAND ARMREST, ELECTRIC (09) - CHASSIS
20
8
13
6
5
2
1
25
19
22
7
8
18
10
4
17
12
11
3
23
24
21
12
16
14
15
9

Артикул

Название

Примечание

Количество

1

87604589

BRACKET

Armrest Mounting

1шт.

2

87604590

PLATE

Clamp

1шт.

3

87578954

CARRIAGE BOLT,Reg Sq Nk, M8 x 1.25 x 160mm, Cl 8.8

1шт.

4

185062R1

BUSHING

1шт.

5

87604588

SUPPORT

Upper, RH Armrest

1шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

8

87314378

CONSOLE

Upper, with Decals, Inc. 9 & 10

1шт.

Deluxe Cab

1шт.

Luxury Cab

1шт.

9

407759A1

DECAL

Throttle / EH Levers

1шт.

Deluxe Cab

1шт.

Luxury Cab

1шт.

10

87314379

COVER

Upper

1шт.

Deluxe Cab

1шт.

Luxury Cab

1шт.

11

277204A2

CUSHION

Vinyl

1шт.

Deluxe Cab

1шт.

11

358812A2

CUSHION ASSY.

Leather

1шт.

Luxury Cab

1шт.

12

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4шт.

13

361350A1

HOUSING

Lower

1шт.

Without Advanced Farming Systems (AFS)

1шт.

13

87339621

HOUSING

Lower

1шт.

With Advanced Farming Systems (AFS)

1шт.

14

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

6шт.

With Advanced Farming Systems (AFS)

1шт.

15

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

6шт.

Without Advanced Farming Systems (AFS)

1шт.

16

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

17

824-1404

NUT,M4, Cl 5

4шт.

18

331649A1

HOLDER

Cup

1шт.

19

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

4шт.

20

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

21

893-11004

LOCK WASHER,Ext Tooth, M4

6шт.

22

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

23

84241100

INSTRUMENT PANEL

Standard

1шт.

23

84241101

INSTRUMENT PANEL

Deluxe

1шт.

24

187820A1

KNOB

2шт.

25

87584684

KNOB

1шт.

Выбрано товаров: 40
