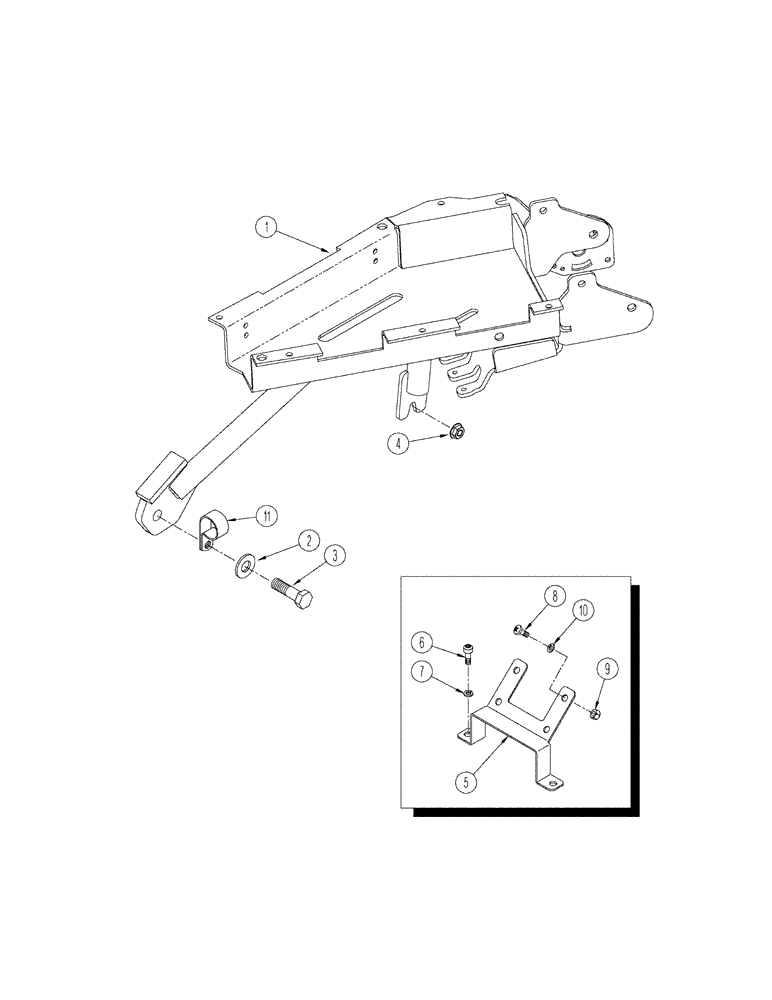

Запчасти Case IH STEIGER 335 (09-17) - CONSOLE - RIGHT-HAND ARMREST, MANUAL (09) - CHASSIS

1

87364048

SUPPORT

Console

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

5

349563A1

BRACKET

without Arm Rest

1шт.

6

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

2шт.

7

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

8

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

4шт.

9

824-1403

NUT,M3, Cl 5

4шт.

10

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

11

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.
