Запчасти Case IH STEIGER 335 (09-14) - CAB - SKIRTS AND GLASS (09) - CHASSIS

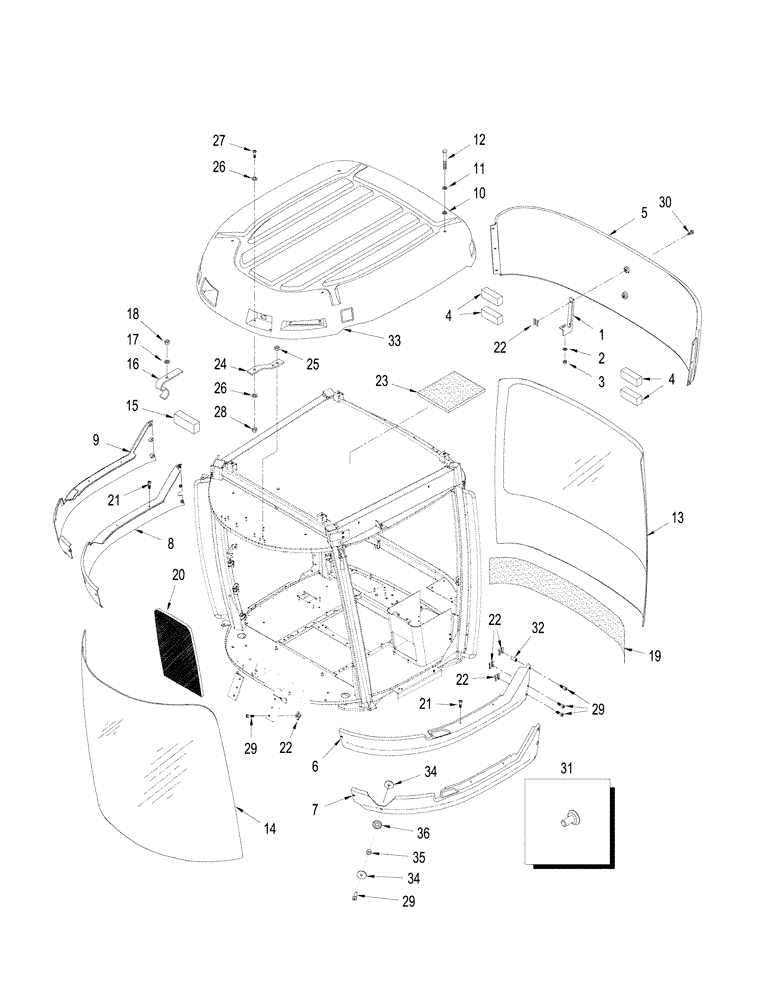

Схема запчастей Case IH STEIGER 335 - (09-14) - CAB - SKIRTS AND GLASS (09) - CHASSIS
11
29
29
26
29
22
28
6
24
17
36
3
32
16
26
25
34
20
8
35
14
13
34
5
7
33
9
12
4
10
23
4
21
22
22
30
31
2
27
21
15
18
19
22
1

Артикул

Название

Примечание

Количество

1

341574A4

BRACKET

Mounting, Rear Skirt

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

4

403325A2

FOAM,30mm x 50mm x 250mm

4шт.

5

87534631

SKIRT

Rear

1шт.

6

87357990

SKIRT COVER

Left-Hand

1шт.

7

87342106

SKIRT COVER

Left-Hand, With Lower Front Wiper

1шт.

8

87357991

SKIRT COVER

Right-Hand

1шт.

9

87342107

SKIRT COVER

Right-Hand, With Lower Front Wiper

1шт.

10

361191A1

GROMMET

4шт.

11

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

13

181240A2

GLASS

Rear

1шт.

14

87436557

TINTED GLASS

Windshield

1шт.

14

87436560

TINTED GLASS

Laminated (Europe Only)

1шт.

15

87543673

SPACER

52шт.

16

117707A3

CLAMP

Window

7шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

19

259462A1

FOAM INSULATION

1525 mm (60")

1шт.

20

87312395

FOAM INSULATION

Steering Console

1шт.

21

840-2820

SCREW,Pan, M8 x 20mm, Cl 4.8

4шт.

22

404882A1

SPRING NUT,M6

M6, Clip Nut

6шт.

23

355716A3

FOAM

Accoustical, Cab Roof

1шт.

24

364156A1

BRACKET

Roof Support

4шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

29

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

10шт.

30

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

31

353-406

PLUG,Dome, .625" hole, Nylon

If Used

1шт.

Used without AFS Option

1шт.

32

404287A1

INSERT,M6

4шт.

33

NSS

NOT SOLD SEPARAT

Roof Assy, See Figure: 09-15

1шт.

34

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

35

60-5021T1

SPACER,0.282" ID x 0.500" OD x 0.312" Thk

2шт.

36

60-6840T1

GROMMET,1/2" ID x 3/4" OD

2шт.

Выбрано товаров: 38
