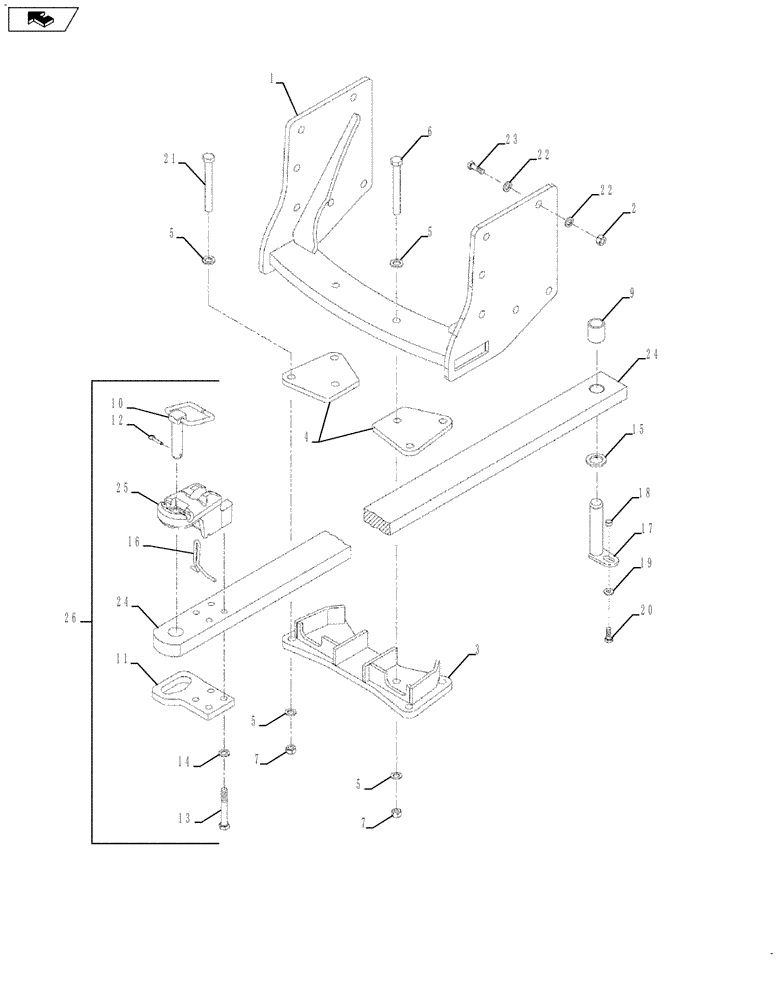

Запчасти Case IH STEIGER 335 (09-08) - DRAWBAR - WITHOUT THREE POINT HITCH (09) - CHASSIS

1

87330929

DRAWBAR SUPPORT

Hanger

1шт.

2

829-1424

NUT,M24, Cl 10

12шт.

3

87726223

SUPPORT

Drawbar

1шт.

4

87568870

PLATE

Mounting

2шт.

5

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

6

827-24210

BOLT,Hex, M24 x 3 x 210mm, Cl 10.9

2шт.

7

829-1424

NUT,M24, Cl 10

6шт.

8

375719A1

STRAP

Hammer, Drop Pin

1шт.

9

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

1шт.

10

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

11

87574391

STEEL PLATE

1шт.

12

87522067

LOCK PIN,11.5mm OD

1шт.

13

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

4шт.

14

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

15

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

1шт.

16

375721A1

PIN

Drop Pin

2шт.

17

87524404

PIN,50.65mm OD x 252mm L

Mounting

1шт.

18

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

19

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

21

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

4шт.

22

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

26шт.

23

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

24

87564456

DRAWBAR

Standard and Heavy Duty

1шт.

25

375719A1

STRAP

Hammer, Drop Pin

1шт.

26

87609236

DRAWBAR

Heavy Duty, Heat Treated, Inc. 10-14, 16 and 25

1шт.
