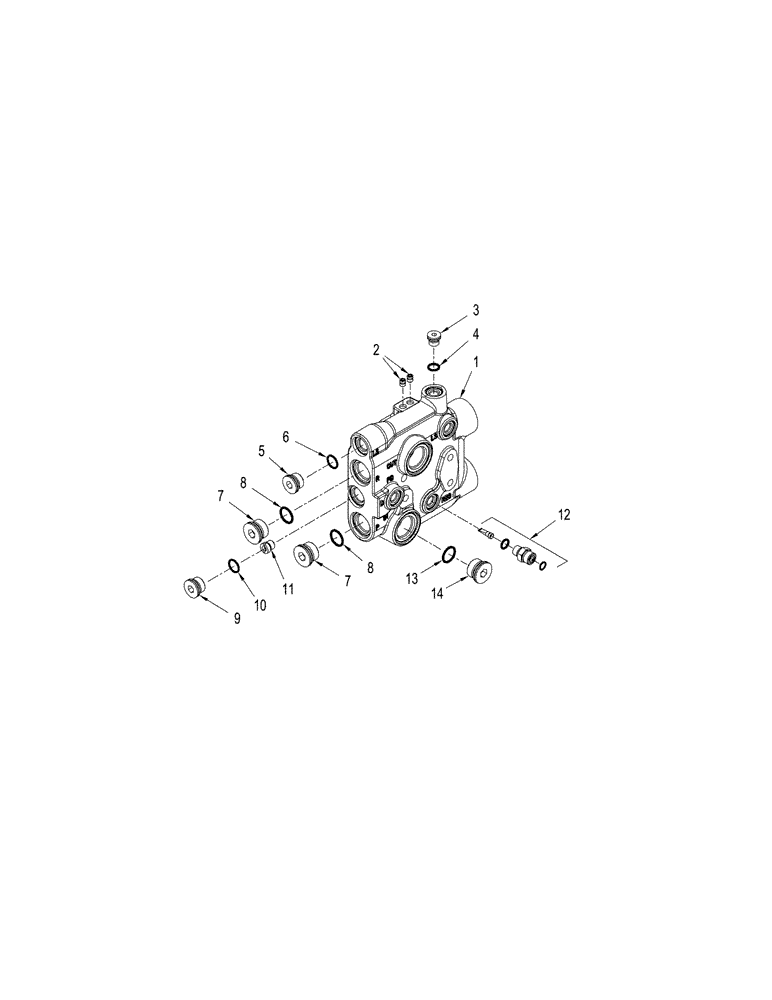

Запчасти Case IH STEIGER 335 (08-41) - TWIN FLOW HYDRAULIC MANIFOLD ASSY. (08) - HYDRAULICS

418456A4

MANIFOLD

Inlet / Outlet, Inc. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

353828A1

PLUG

Expansion

2шт.

3

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 4

1шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

221578A1

PLUG,M18 x 1.5 ORB

Incl. 6

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

221580A1

PLUG,M27 x 2 ORB

Inc. 8

2шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

221579A1

PLUG,M22 x 1.5 ORB

Incl. 10

1шт.

10

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

11

431479A1

CHECK VALVE

1шт.

12

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

1шт.

13

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

14

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Inc. 14

2шт.
