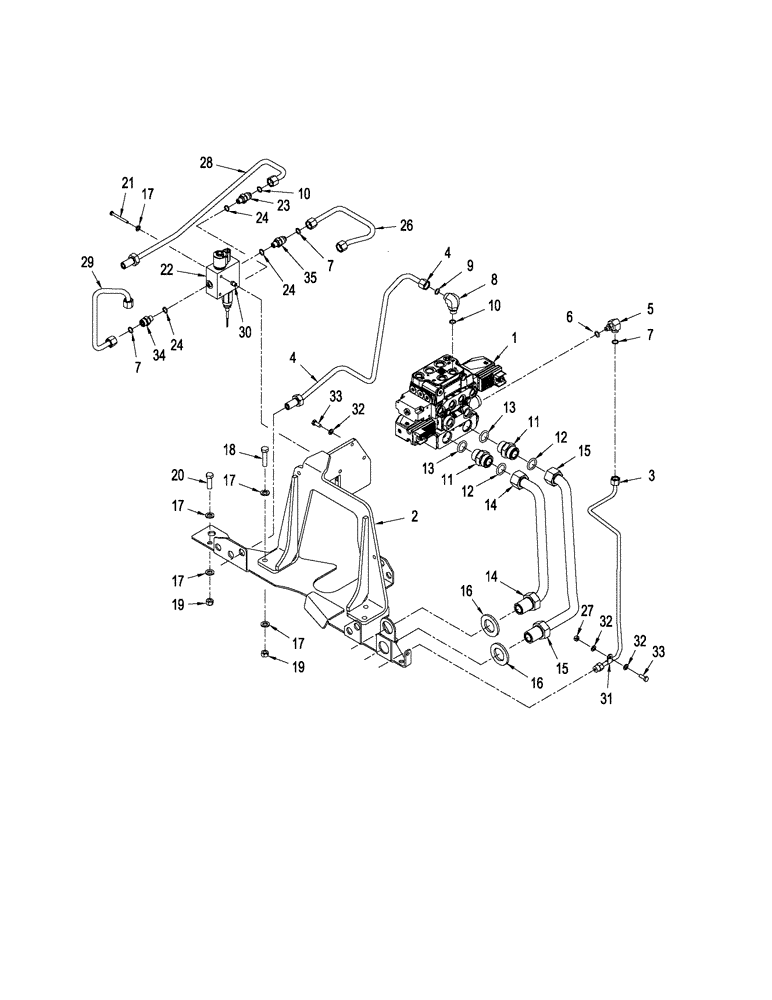

Запчасти Case IH STEIGER 335 (08-23) - PRIORITY VALVE AND ATTACHING PARTS, WITH ACCUSTEER (08) - HYDRAULICS

1

87585899

HYDRAULIC VALVE

Priority / EHPS, See Figure: 08-13

1шт.

2

87365739

BRACKET

Priority Valve

1шт.

3

87308825

TUBE,9.52 mm OD

Load Sense

1шт.

4

87308363

HYD TUBE

'T' Port Priority Valve

1шт.

5

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Inc. 6 & 7

1шт.

6

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 9 & 10

1шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 12 & 13

2шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

14

87365926

HYD TUBE,20.58 mm ID x 25.40 mm OD x 225, 223 mm L

Pressure to Priority Valve

1шт.

15

87314026

HYD TUBE

EF Supply

1шт.

16

896-12036

WASHER,39mm ID x 66mm OD x 6mm Thk

2шт.

17

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

16шт.

18

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

19

829-1412

NUT,M12, Cl 10.9

8шт.

20

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

21

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

22

87719757

BY-PASS VALVE

Combination

1шт.

23

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

Inc. 24 & 25

1шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

87545974

TUBE,9.4 mm ID x 12.7 mm OD x 198, 104 mm L

Sense Valve

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

28

87545972

TUBE,9.4 mm ID x 12.7 mm OD

Steering Return

1шт.

29

87545976

TUBE,9.4 mm ID x 12.7 mm OD

Pressure Sense

1шт.

30

404287A1

INSERT,M6

Threaded

2шт.

31

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

33

827-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

34

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

Inc. 10 & 24

1шт.

35

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

Destroke Pump, 45 GPH, Inc. 7 & 24

1шт.
