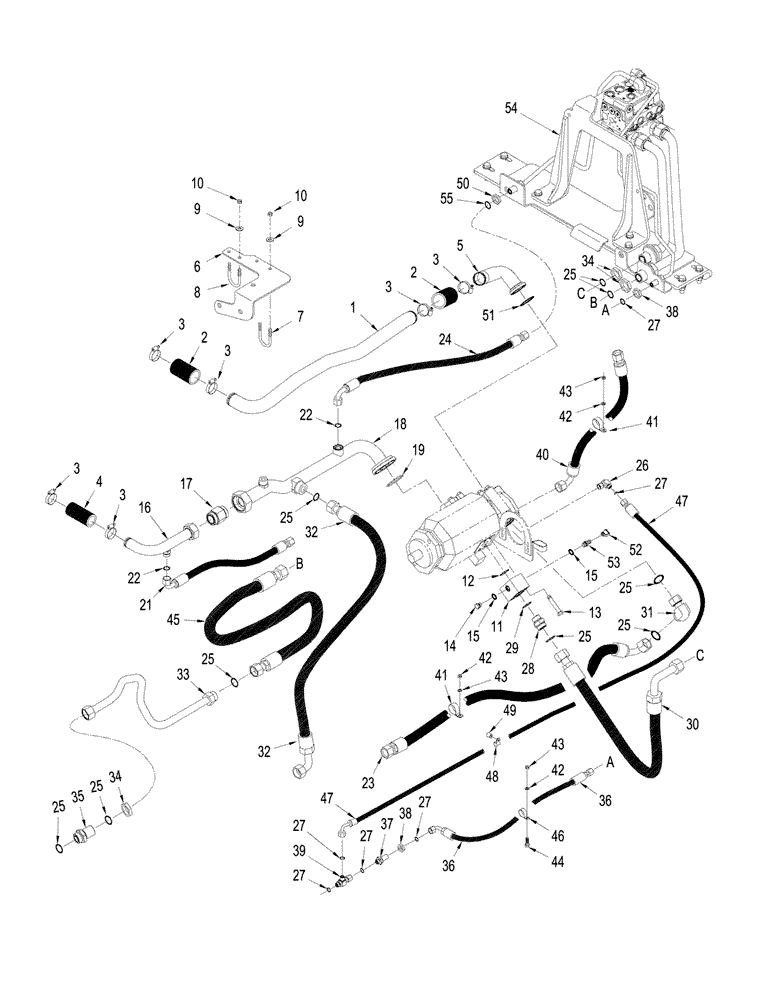

Запчасти Case IH STEIGER 335 (08-20) - HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITHOUT ACCUSTEER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
87314032
HYD TUBE
Charge Pump Suction
1шт.
Used with Power Shift Transmission
1шт.
1
411140A1
TUBE
Charge Pump Suction
1шт.
Used with Manual Shift Transmission
1шт.
2
31-2427
HOSE,2.00" ID x 6.00"
102 mm (4"), Cut From: 4-4568
2шт.
4
1-4571
HOSE
114 mm (4-1/2"), Cut From: 1-4482T1
1шт.
5
87334840
HYD TUBE
Charge Pump Supply
1шт.
Used with Power Shift Transmission
1шт.
5
87304513
TUBE,50.80 mm OD
Charge Pump Supply
1шт.
Used with Manual Shift Transmission
1шт.
6
430948A1
BRACKET
Mounting
1шт.
Used with Power Shift Transmission
1шт.
6
87318222
BRACKET
Mounting
1шт.
Used with Manual Shift Transmission
1шт.
7
19-1049
U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L
1шт.
8
19-154
U-BOLT,5/16"-18 x 1 3/4" x 3
1шт.
9
495-21038
WASHER,5/16"
4шт.
10
231-1445
NUT,5/16"-18, GB
4шт.
11
86992232
BLOCK
Pump
1шт.
12
238-6222
O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro
1шт.
13
461-35040
HEX SOC SCREW,1/2"-13 x 2 1/2"
4шт.
14
220064A1
PLUG,M14 x 1.5, ORB
Incl. 15
1шт.
15
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
3шт.
16
419647A1
TUBE
Supply, Piston Pump
1шт.
17
87545498
CHECK VALVE
Inc. item 17A
1шт.
17a
238-6029
O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro
For item #17
2шт.
18
87304546
HYD TUBE
Piston Pump Supply
1шт.
Used with Power Shift Transmission
1шт.
18
87304524
HYD TUBE
Piston Pump Supply
1шт.
Used with Manual Shift Transmission
1шт.
19
238-5232
O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro
1шт.
21
87631736
HOSE ASSY.
536 mm (21")
1шт.
22
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
23
315573A1
HOSE ASSY.
Charge Pump to Return Tube, 1700 mm (67")
1шт.
24
87308660
HOSE
500 mm (19.690"), to Tank Return Tube
1шт.
25
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
7шт.
26
701-319
ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Inc. 27
1шт.
27
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
5шт.
28
700-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Inc. 25 & 29
1шт.
29
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
30
87364346
HOSE
Pump Block to Priority Valve, 848 mm (33-7/8")
1шт.
31
701-339
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS
Inc. 25
1шт.
32
366503A1
HOSE ASSY.
Regulator Valve to Piston Pump Supply
1шт.
33
87385132
HYD TUBE,20.58 mm ID x 25.40 mm OD x 478, 235 mm L
EF Supply, 1330 mm (52-3/8")
1шт.
34
701-908
BHD LOCK NUT,1-7/16" - 12
3шт.
35
701-116
UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS
Inc. 25
1шт.
36
87308884
HOSE
to Shuttle Valve, 931 mm (36-1/2")
1шт.
37
701-120
UNION,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS
Inc. 27
1шт.
38
701-909
NUT,11/16" - 16
2шт.
40
364315A1
HOSE,25.4mm ID x 1305mm L
Charge Pump to Filter, 1305 mm (51-3/8")
1шт.
Used with Power Shift Transmission
1шт.
40
419364A1
HOSE ASSY.
Charge Pump to Filter, 1359 mm (53-1/2")
1шт.
Used with Manual Shift Transmission
1шт.
41
515-24349
CLAMP,1 3/8", Insul, 7/16" Bolt
4шт.
42
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
43
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
4шт.
44
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
2шт.
45
87397785
HOSE
EF Supply, 1258 mm (49-1/2")
1шт.
46
515-22254
CLAMP,1", Insul, 5/16" Bolt
1шт.
47
87388640
HOSE
Compensator to Shuttle Valve, 1986 mm (78")
1шт.
48
515-22159
CLAMP,5/8", Insul, 5/16" Bolt
3шт.
49
410449A1
SPACER
1шт.
50
701-903
NUT,13/16" - 16
1шт.
51
238-6228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro
1шт.
52
H434163
DUST CAP
1шт.
53
NSS
NOT SOLD SEPARAT
Fitting, Inc. 15
1шт.
54
REF
INSTRUCTION
Priority Valve, with Tubes & Brackets, See Figure: 08-21
1шт.
56
87397785
HOSE
EF Supply, 1258 mm (49-1/2")
1шт.
Выбрано товаров: 72
