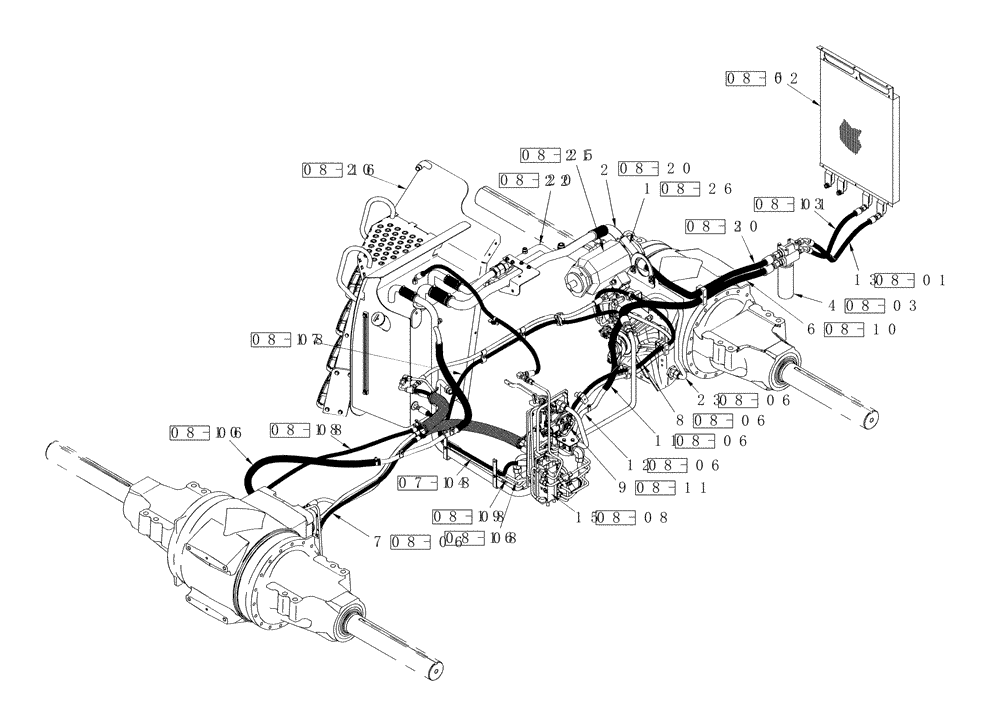

Запчасти Case IH STEIGER 335 (01A-09) - HYDRAULICS - AXLE LUBRICATION & COOLING CIRCUIT WITH ACCUSTEER (00) - PICTORIAL INDEX

1

PUMP, Gear, See Figure 08-26

1шт.

2

TUBE, Gear Pump Supply, High Output Hydraulics, See Figure 08-20

1шт.

3

HOSE, Gear Pump to Filter, High Output Hydraulics, See Figure 08-20

1шт.

4

FILTER, Axle Cooling, Right-Hand, See Figure 08-03

1шт.

5

COOLER, Hydraulic Oil, See Figure 08-02

1шт.

6

TUBE, Filter To Regulator Valve, See Figure 08-10

1шт.

7

HOSE, Supply, Regulator Valve to Rear Axle, See Figure 08-06

1шт.

8

HOSE, Regulator Valve, Supply To Front Axle, See Figures 08-06

1шт.

9

VALVE, Regulator, See Figure 08-11

1шт.

10

HOSE, Rear Axle, Return To Tank, See Figure 08-06

1шт.

11

HOSE, Front Axle, Return To Tank, See Figure 08-06

1шт.

12

TUBE, Return, Front & Rear Axle to Tank, See Figure 08-06

1шт.

13

HOSE, Filter To Cooler, See Figure 08-01

1шт.

14

HOSE, Tow Valve, Return To Tank, See Figure 07-08

1шт.

15

PUMP, Axle, Air/Lube, See Figure 08-08

1шт.

16

TUBE, Front Axle, Air/Lube Supply, See Figure 08-08

1шт.

17

HOSE, Front Axle, Air/Lube Supply, See Figure 08-08

1шт.

18

HOSE, Rear Axle, Air/Lube Supply, See Figures 08-08

1шт.

Used on models without PTO

1шт.

19

TUBE, Air Supply To Rear Axle, See Figure 08-08

1шт.

20

TANK, Hydraulic, See Figure 08-16

1шт.

21

PUMP, Piston, High Output Hydraulics, See Figure 08-25

1шт.

22

TUBE, Piston Pump Supply, High Output Hydraulics, See Figure 08-20

1шт.

23

TUBE, Return to Tank from Front Axle, See Figure 08-06

1шт.
