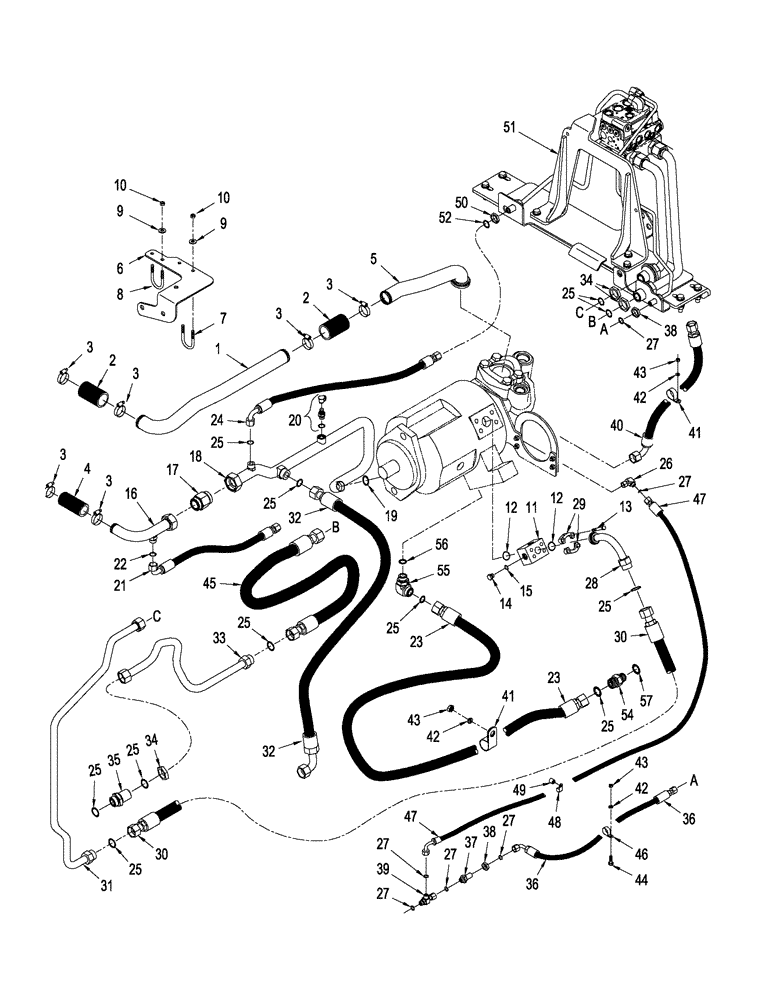

Запчасти Case IH STEIGER 335 (08-17) - STANDARD HYDRAULICS - PUMP LUBRICATION CIRCUIT (08) - HYDRAULICS

1

87365707

HYD TUBE,47.498 mm ID x 50.8 mm OD x 643, 118 mm L

Charge Pump Suction

1шт.

Used with Manual Shift Transmission

1шт.

1

87314032

HYD TUBE

Charge Pump Suction

1шт.

Used with Power Shift Transmission

1шт.

2

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4"), Cut From: 4-4568

2шт.

3

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

6шт.

4

1-4571

HOSE

114 mm (4-1/2"), Cut From: 1-4482T1

1шт.

5

87365405

HYD TUBE,47.49 mm ID x 50.8 mm OD x 371, 90 mm L

Charge Pump Supply

1шт.

Used with Manual Shift Transmission

1шт.

5

87362214

TUBE,50.8 mm OD x 364, 120 mm L

Charge Pump Supply

1шт.

Used with Power Shift Transmission

1шт.

6

87318222

BRACKET

Mounting, Tube

1шт.

Used with Manual Shift Transmission

1шт.

7

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

8

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

1шт.

9

495-21038

WASHER,5/16"

4шт.

10

231-1445

NUT,5/16"-18, GB

4шт.

11

87309732

BLOCK

Pump

1шт.

12

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

13

426-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

4шт.

14

220064A1

PLUG,M14 x 1.5, ORB

Incl. 15

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

16

419647A1

TUBE

Supply, Piston Pump

1шт.

17

87545498

CHECK VALVE

Inc. item 17A

1шт.

17a

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

For item 17

2шт.

18

87548735

TUBE,34.8 mm ID x 38.1 mm OD x 517, 234 mm L

Piston Pump Supply

1шт.

Used with Manual Shift Transmission

1шт.

18

87305444

HYD TUBE

Piston Pump Supply

1шт.

Used with Power Shift Transmission

1шт.

19

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

20

358968A1

FITTING

Fitting, Diagnostic

1шт.

21

327499A1

HOSE ASSY.

655 mm (26 1/2")

1шт.

With Power Shift Transmission

1шт.

21

87631736

HOSE ASSY.

536 mm (21")

1шт.

Used with Manual Shift Transmission

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

397577A1

HOSE ASSY.

1550 mm (61"), Gear Pump to RH Filter

1шт.

24

87308660

HOSE

500 mm (19.680")

1шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

9шт.

26

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 27

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

28

87319271

TUBE,25.40 mm OD x 140, 120 mm L

Piston Pump Outlet

1шт.

29

A12306

FLANGE

Split Clamp

2шт.

30

87342161

HOSE

Gear Pump Pressure Supply, 1041 mm (41")

1шт.

31

87551754

TUBE,20.58 mm ID x 25.4 mm OD x 751, 583 mm L

Gear Pump Pressure Supply

1шт.

32

366503A1

HOSE ASSY.

to Piston Pump Supply Tube, 1330 mm (52-3/8")

1шт.

33

87385132

HYD TUBE,20.58 mm ID x 25.40 mm OD x 478, 235 mm L

EF Supply

1шт.

34

701-908

BHD LOCK NUT,1-7/16" - 12

3шт.

35

701-116

UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Inc. 25

1шт.

36

87308884

HOSE

to Shuttle Valve, 931 mm (36-1/2")

1шт.

37

701-120

UNION,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Inc. 27

1шт.

38

701-909

NUT,11/16" - 16

3шт.

39

300209A1

VALVE

Shuttle

1шт.

40

412624A1

HOSE ASSY.

Charge, Serial Range: Pump-Filter

1шт.

Used with Manual Shift Transmission

1шт.

40

375333A1

HOSE ASSY.

Charge Pump, Serial Range: -Filter

1шт.

Used with Power Shift Transmission

1шт.

41

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

3шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

43

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

44

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

45

87397785

HOSE

EF Supply, 1258 mm (49-1/2")

1шт.

46

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

47

87388640

HOSE

Compensator to Shuttle Valve, 1986 mm (78")

1шт.

48

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

3шт.

49

410449A1

SPACER

1шт.

50

701-903

NUT,13/16" - 16

1шт.

51

REF

INSTRUCTION

Valve, Priority, with Tubes and Brackets, See Figure: 08-22

1шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

87397785

HOSE

EF Supply, 1258 mm (49-1/2")

1шт.

54

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 25 & 57

1шт.

55

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 25 & 56

1шт.

56

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

57

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
