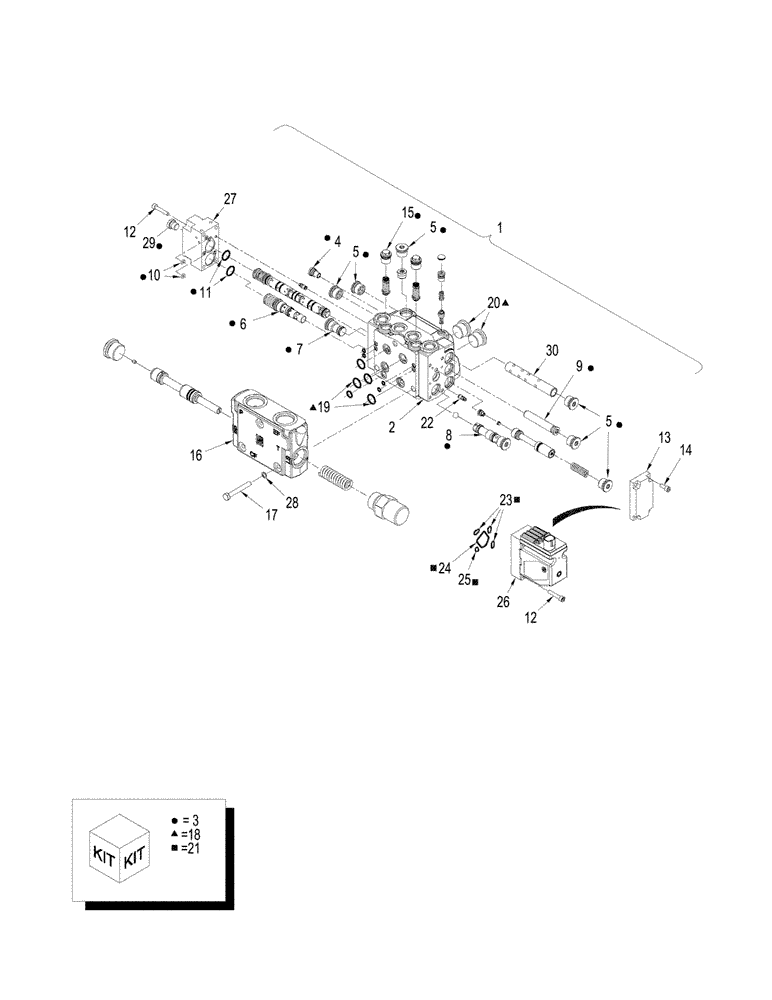

Запчасти Case IH STEIGER 335 (08-12) - PRIORITY / STEERING CONTROL VALVE ASSEMBLY, WITHOUT ACCUSTEER (08) - HYDRAULICS

1

87585897

HYDRAULIC VALVE

Priority / EHPS, Inc. 2 - 20

1шт.

1

87585897R

REMAN-HYD VALVE

Remanufactured Hydraulic Valve

1шт.

1

87585897C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, HYDRAULIC VALVE

1шт.

1

87585898

HYDRAULIC VALVE

Priority / EHPS, Inc. 2 -26

1шт.

Used with ACCUGUIDE Application

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Steering Valve

1шт.

3

87397327

SEAL KIT

EHPS

1шт.

4

NSS

NOT SOLD SEPARAT

Plug, with O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, with O-Ring

6шт.

6

NSS

NOT SOLD SEPARAT

Bushing, with O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, with O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, with O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, with O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

5шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

12

NSS

NOT SOLD SEPARAT

Screw

1шт.

13

NSS

NOT SOLD SEPARAT

Cover

1шт.

14

NSS

NOT SOLD SEPARAT

Screw

4шт.

15

NSS

NOT SOLD SEPARAT

Plug, with O-Ring

2шт.

16

NSS

NOT SOLD SEPARAT

Housing, Priority Valve

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt

3шт.

18

87397328

SEAL KIT

Priority Valve, OLS

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

20

NSS

NOT SOLD SEPARAT

Plug, with O-Ring

2шт.

21

87397329

SEAL KIT

PVE

1шт.

Used with ACCUGUIDE Application

1шт.

22

87540544

VALVE

Shuttle

2шт.

Used with ACCUGUIDE Application

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

Used with ACCUGUIDE Application

1шт.

24

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Used with ACCUGUIDE Application

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Used with ACCUGUIDE Application

1шт.

26

NSS

NOT SOLD SEPARAT

Solenoid, PVEH

1шт.

Used with ACCUGUIDE Application

1шт.

27

NSS

NOT SOLD SEPARAT

Cover

1шт.

28

NSS

NOT SOLD SEPARAT

Washer

3шт.

29

NSS

NOT SOLD SEPARAT

Plug, with O-Ring

1шт.

30

87637887

KIT

Steering Spool

1шт.
