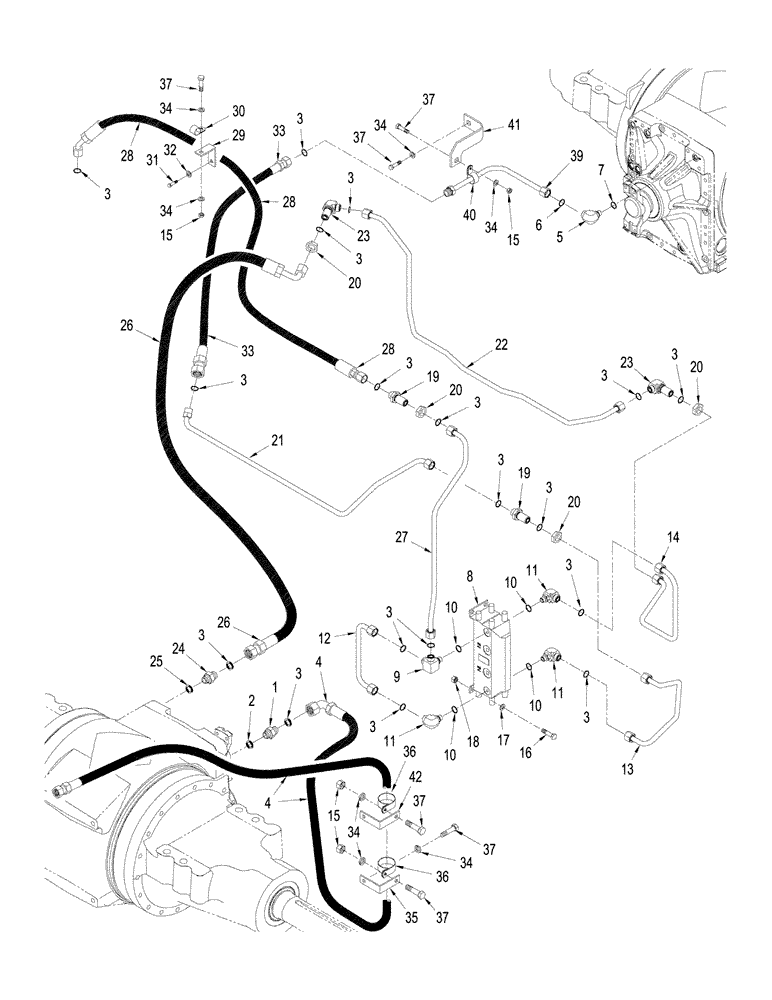

Запчасти Case IH STEIGER 335 (08-08) - AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, WITH ACCUSTEER (08) - HYDRAULICS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2 and 3

1шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

10шт.

4

436926A1

HOSE ASSY.

2045 mm ( 81")

1шт.

5

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 6, 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

434727A1

MOTOR-PUMP

Axle Air/ Lube

1шт.

9

87323932

FITTING

Tee, Special, 1/2 or x fc sl, Inc. 3 and 10

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

11

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3 and 10

3шт.

12

449794A1

TUBE

1шт.

13

86988498

TUBE,12.70 mm OD

1шт.

14

86988496

TUBE,12.70 mm OD

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

18

829-1310

NUT,M10, Cl 10

4шт.

19

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 3

3шт.

20

701-903

NUT,13/16" - 16

4шт.

21

86988505

TUBE,12.70 mm OD

1шт.

22

86988503

TUBE,12.70 mm OD

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 3

2шт.

24

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 3 and 25

1шт.

25

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

26

86990405

HOSE ASSY.

1753 mm (69"), Rear Axle to Air/ Lube Pump

1шт.

27

87323936

TUBE,12.70 mm OD

Air Supply, Pump Motor

1шт.

28

87447885

HOSE ASSY.

1шт.

29

416102A1

SUPPORT

Bracket

1шт.

30

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

31

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

32

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

33

86992911

HOSE ASSY.

1562 mm (61"), Front Axle to Air/Lube Pump

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

35

416512A1

BRACKET

Mounting, Hose

1шт.

36

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

37

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

39

86992700

TUBE,12.70 mm OD

1шт.

40

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

41

86992787

BRACKET

Support

1шт.

42

369960A1

BRACKET

Support

1шт.
